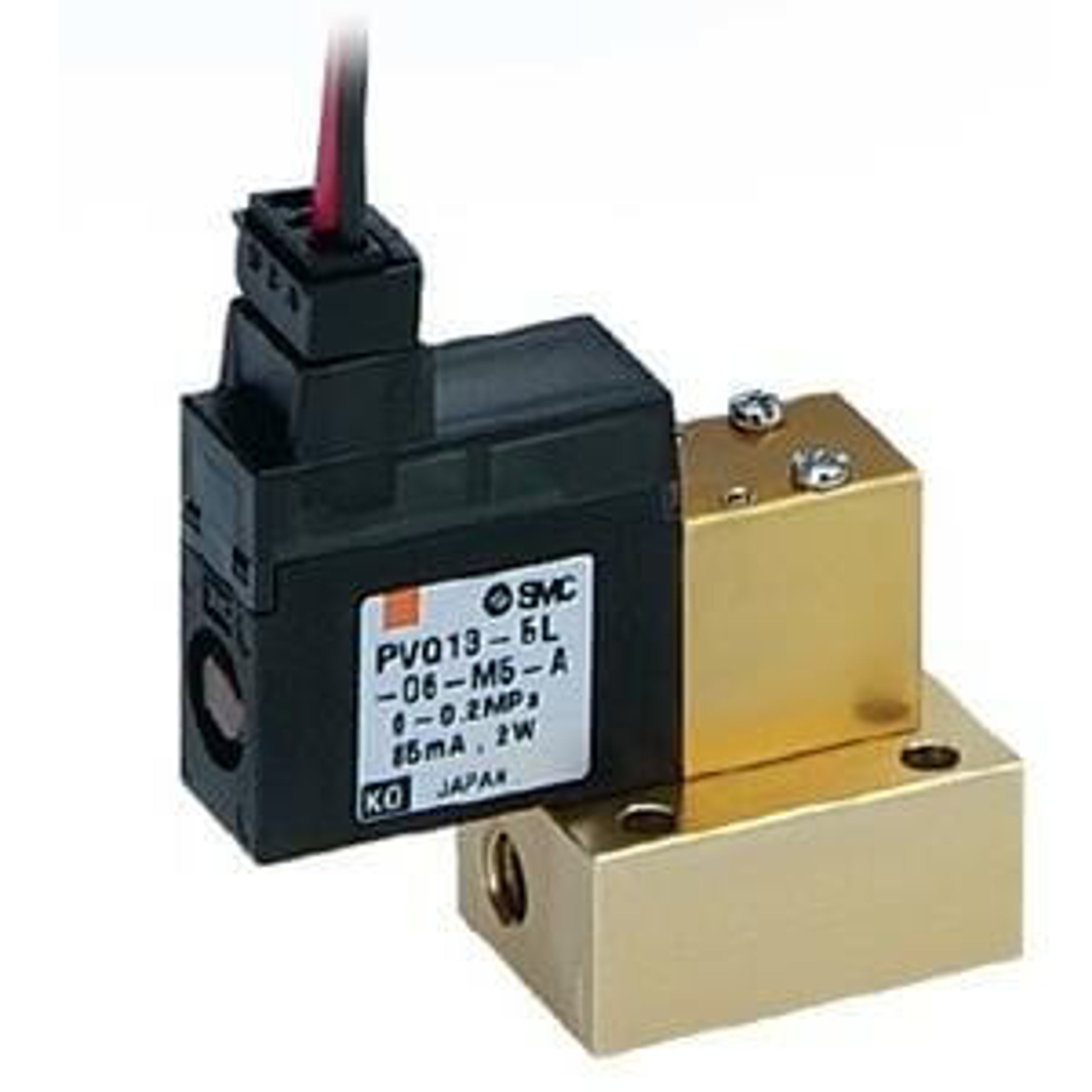

SMC Proportional Valve

Name: SMC Proportional Valve
Brand: SMC
SKU: PVQ13-6M-06-A

Product Code: PVQ13-6M-06-A

...

Available to Order

tech sheet

Details

Body Material

Brass C36 and stainless steel

Application

Suitable for Vacuum Applications

Ambient Temperature

Not specified

Amps

Not specified

Orifice mm

0.6

Brand

SMC

Seal Material

FKM

Voltage

6 12VDC

Manufacturer

SMC

Actuation

Electro Pneumatic

Approvals

CE Certificates available

Specification

SMC Proportional Valve., SMC

Additional Variants

Product Name

Product Code

Orifice mm

Voltage

Width mm

Port Size mm

Application

Height mm

Repeatability bar

Length mm

Flow LPM

Approvals

Accessories

Amps

Body Size

Noise Level DBA

Body Material

Mounting

Actuation

Port Size Metric

Electrical Connection

Actuator Working Temperature

Actuator Material

Maximum Flow

Buy Price

SMC Proportional Valve

PVQ13-5L-03-A

0.3

24VDC

–

CE Certificates available

–

Brass C36 and stainless steel

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-6L-04-M5-A

0.4

6 12VDC

Control flow rate up to 6 l per min according to current

3 percent or less

–

CE Certificates available

–

Brass C36 and stainless steel

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-6L-04-A

–

12VDC

–

Suitable for vacuum applications

–

3 percent or less

–

CE Certificate

Lead Wire

–

Brass C36 and stainless steel

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5L-06-A

0.6

24VDC

–

Flow control up to 6 l per minute with repeatability 3 percent or less and hysteresis 10 percent or less suitable for vacuum applications

–

Brass C36 and stainless steel

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5L-08-A

0.8

24VDC

–

Suitable for vacuum applications

–

3 percent or less

–

CE Certificates available

Lead Wire

–

Compact

Reduced noise

Brass C36

Without Sub Plate with Mounting Screw

Electrical

–

£100.95

Available to Order

SMC Solenoid Valve

PVQ13-6M-04-M5-A

0.4

6 12VDC

–

Suitable for vacuum applications

–

Brass C36

–

£107.00

Available to Order

SMC Solenoid Valve

PVQ13-5M-04-M5-A

0.4

24VDC

–

Control flow rate up to 6 l per minute with repeatability 3 percent or less and hysteresis 10 percent or less suitable for vacuum applications

–

CE Certificates available

–

Brass C36 and stainless steel

–

M5x0.8

M Plug Connector

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-6M-03-M5-A

0.3

6 12VDC

–

Suitable for vacuum applications

–

3 percent or less

–

CE Certificates available

–

Brass C36 and stainless steel

–

M5x0.8

M Plug Connector

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-5M-08-M5-A

0.8

24VDC

–

Vacuum applications

3 percent or less

–

Brass C36

–

£107.00

Available to Order

SMC Solenoid Valve

PVQ13-6L-03-M5-A

0.3

12VDC

Flow control with proportional solenoid valve suitable for vacuum applications

–

CE Certificates

–

Reduced noise

Brass C36

–

Electro Pneumatic

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-5MO-06-A

0.6

24VDC

–

Control flow rate up to 6 l per minute according to current suitable for vacuum applications

–

3 percent or less

–

Brass C36 and stainless steel

Without Sub Plate with Mounting Screw

Proportional

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-5MO-03-A

–

24VDC

–

Brass C36

–

Electrical

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-6LO-03-A

0.3

6 12VDC

–

Suitable for vacuum applications

–

CE Certificates available

–

Not specified

–

Brass C36

–

Electro Pneumatic

–

Not specified

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-5M-08-A

0.8

24VDC

–

Suitable for vacuum applications

–

Brass C36 and stainless steel

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5LO-08-M5A

–

£104.97

Available to Order

SMC Proportional Valve

PVQ13-6L-03-A

0.3

6 12VDC

–

Control flow rate up to 6 l per minute with proportional solenoid valve suitable for vacuum applications

–

3 percent or less

–

https://static.smc.eu/binaries/content/assets/smc_global/product-documentation/ce-certificates/en/newdoc_pvq10_tf1v12en.pdf https://static.smc.eu/binaries/content/assets/smc_global/product-documentation/ce-certificates/en/newdoc_pvq10_tf122030en.pdf https://static.smc.eu/binaries/content/assets/smc_global/product-documentation/ce-certificates/en/doc_pvqx_tfm0007-b.pdf

–

Not specified

–

Brass C36 and stainless steel

–

Electrical

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5MO-03-M5A

–

£104.97

Available to Order

SMC Proportional Valve

PVQ13-6M-08-A

0.8

6 12VDC

–

Suitable for vacuum applications

–

3 percent or less

–

CE Certificates available

–

Brass C36

–

M Plug Connector

–

6 l per minute

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5LO-08-A

0.8

24VDC

–

Suitable for vacuum applications

–

Brass C36 and stainless steel

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-6M-08-M5-A

0.8

6 12VDC

–

Brass C36

–

Electrical

–

£107.00

Available to Order

View all 30 variants
