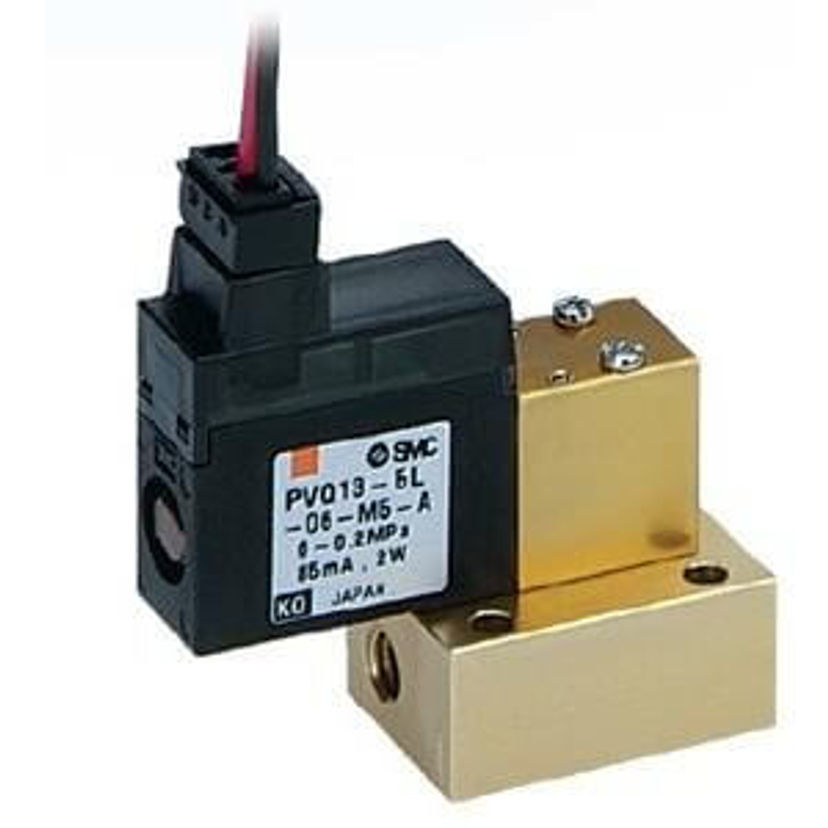

SMC Proportional Valve

Name: SMC Proportional Valve
Brand: SMC
SKU: PVQ13-6M-08-A

Product Code: PVQ13-6M-08-A

...

Available to Order

tech sheet

Details

Application

Suitable for Vacuum Applications

Orifice mm

0.8

Body Material

Brass C36

Brand

SMC

Electrical Connection

M Plug Connector

Repeatability bar

3 percent or less

Seal Material

FKM

Maximum Flow

6 l per minute

Voltage

6 12VDC

Manufacturer

SMC

Approvals

CE Certificates available

Specification

SMC Proportional Valve., SMC

Additional Variants

Product Name

Product Code

Orifice mm

Body Material

Voltage

Width mm

Port Size mm

Application

Height mm

Length mm

Flow LPM

Approvals

Accessories

Amps

Body Size

Noise Level DBA

Mounting

Actuation

Port Size Metric

Ambient Temperature

Actuator Working Temperature

Actuator Material

Repeatability bar

Buy Price

SMC Proportional Valve

PVQ13-5L-03-A

0.3

Brass C36 and stainless steel

24VDC

–

CE Certificates available

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-6L-04-M5-A

0.4

Brass C36 and stainless steel

6 12VDC

Control flow rate up to 6 l per min according to current

–

CE Certificates available

–

3 percent or less

£107.00

Available to Order

SMC Proportional Valve

PVQ13-6L-04-A

–

Brass C36 and stainless steel

12VDC

–

Suitable for vacuum applications

–

CE Certificate

Lead Wire

–

3 percent or less

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5L-06-A

0.6

Brass C36 and stainless steel

24VDC

–

Flow control up to 6 l per minute with repeatability 3 percent or less and hysteresis 10 percent or less suitable for vacuum applications

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5L-08-A

0.8

Brass C36

24VDC

–

Suitable for vacuum applications

–

CE Certificates available

Lead Wire

–

Compact

Reduced noise

Without Sub Plate with Mounting Screw

Electrical

–

3 percent or less

£100.95

Available to Order

SMC Solenoid Valve

PVQ13-6M-04-M5-A

0.4

Brass C36

6 12VDC

–

Suitable for vacuum applications

–

£107.00

Available to Order

SMC Solenoid Valve

PVQ13-5M-04-M5-A

0.4

Brass C36 and stainless steel

24VDC

–

Control flow rate up to 6 l per minute with repeatability 3 percent or less and hysteresis 10 percent or less suitable for vacuum applications

–

CE Certificates available

–

M5x0.8

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-6M-03-M5-A

0.3

Brass C36 and stainless steel

6 12VDC

–

Suitable for vacuum applications

–

CE Certificates available

–

M5x0.8

–

3 percent or less

£107.00

Available to Order

SMC Proportional Valve

PVQ13-5M-08-M5-A

0.8

Brass C36

24VDC

–

Vacuum applications

–

3 percent or less

£107.00

Available to Order

SMC Solenoid Valve

PVQ13-6L-03-M5-A

0.3

Brass C36

12VDC

Flow control with proportional solenoid valve suitable for vacuum applications

–

CE Certificates

–

Reduced noise

–

Electro Pneumatic

–

Not specified

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-5MO-06-A

0.6

Brass C36 and stainless steel

24VDC

–

Control flow rate up to 6 l per minute according to current suitable for vacuum applications

–

Without Sub Plate with Mounting Screw

Proportional

–

3 percent or less

£98.94

Available to Order

SMC Proportional Valve

PVQ13-5MO-03-A

–

Brass C36

24VDC

–

Electrical

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-6LO-03-A

0.3

Brass C36

6 12VDC

–

Suitable for vacuum applications

–

CE Certificates available

–

Not specified

–

Electro Pneumatic

–

Not specified

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-5M-08-A

0.8

Brass C36 and stainless steel

24VDC

–

Suitable for vacuum applications

–

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5LO-08-M5A

–

£104.97

Available to Order

SMC Proportional Valve

PVQ13-6L-03-A

0.3

Brass C36 and stainless steel

6 12VDC

–

Control flow rate up to 6 l per minute with proportional solenoid valve suitable for vacuum applications

–

https://static.smc.eu/binaries/content/assets/smc_global/product-documentation/ce-certificates/en/newdoc_pvq10_tf1v12en.pdf https://static.smc.eu/binaries/content/assets/smc_global/product-documentation/ce-certificates/en/newdoc_pvq10_tf122030en.pdf https://static.smc.eu/binaries/content/assets/smc_global/product-documentation/ce-certificates/en/doc_pvqx_tfm0007-b.pdf

–

Not specified

–

Electrical

–

3 percent or less

£100.95

Available to Order

SMC Proportional Valve

PVQ13-5MO-03-M5A

–

£104.97

Available to Order

SMC Proportional Valve

PVQ13-5LO-08-A

0.8

Brass C36 and stainless steel

24VDC

–

Suitable for vacuum applications

–

£98.94

Available to Order

SMC Proportional Valve

PVQ13-6M-08-M5-A

0.8

Brass C36

6 12VDC

–

Electrical

–

£107.00

Available to Order

SMC Proportional Valve

PVQ13-5M-03-A

0.3

Brass C36 and stainless steel

24VDC

–

Control flow rate up to 6 l per minute according to current suitable for vacuum applications

–

CE Certificates available

–

£100.95

Available to Order

View all 30 variants
