M332-48188

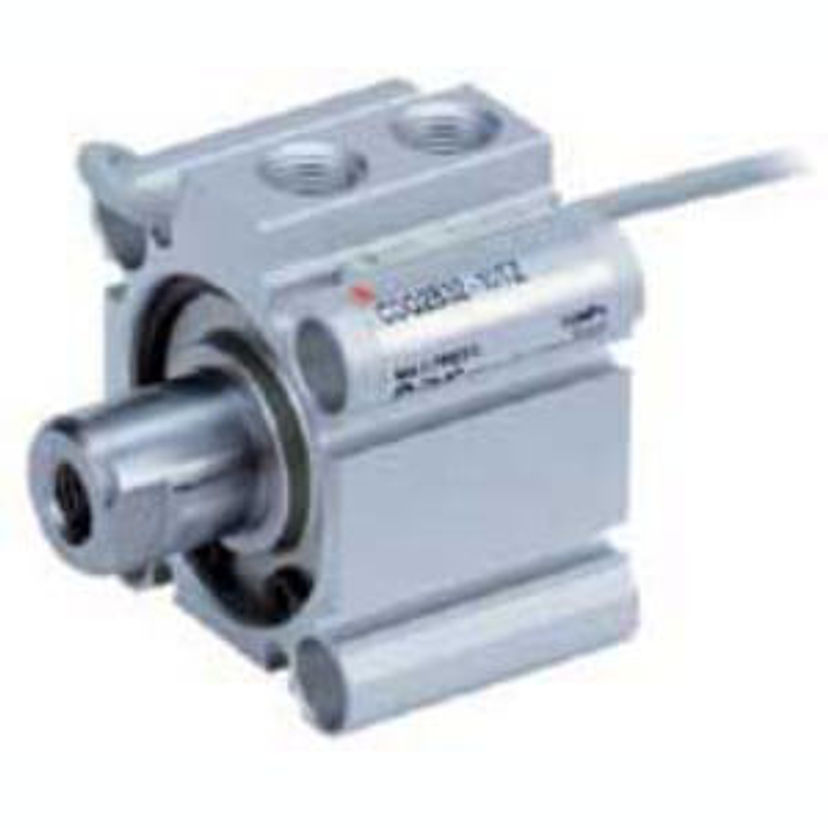

COMPACT CYLINDER 40 STR=10

Product Code: CQ2B40TF-10SZ



...

Available to Order

tech sheet

Details

Bore Size mm
40
Series
CQ2-Z
Height mm
52
Length mm
47
Brand
SMC
Stroke Length mm
10
Mounting
B Through Hole Standard
Width mm
57

Specification

COMPACT CYLINDER 40 STR=10, SMC

Additional Variants

Product Name
Product Code
Stroke Length mm
Body Material
Manufacturer
Width mm
Mounting
Length mm
Height mm
Bore Size mm
Actuation
Port Size Metric
Magnetic
Buy Price
M332-48188

SMC Compact Cylinder 32 Str=5

CDQ2B32TF-5SZ
5
Standard Rod End Female Thread
SMC
45
Through Hole Standard
50
45
32
–
–
–
£46.97

Available to Order

M332-48188

SMC Compact Cylinder 50 Str=20

CQ2A50TF-20TZ
20
–
SMC
–
Both Ends Tapped
–
–
50
Single Acting
–
–
£59.65

Available to Order

M332-48188

SMC Compact Cylinder 16 Str=10

CQ2A16-10S
10
–
SMC
32
A Both Ends Tapped
29
29
16
Single Acting
Rc
–
£25.30

Available to Order

M332-48188

SMC Compact Cylinder 40 Str=10

CDQ2B40TF-10SZ
10
–
SMC
57
Through Hole Standard
57
52
40
Single Acting Spring Return
G 32-100 Bore
–
£64.50

Available to Order

M332-48188

SMC Compact Cylinder 25 Str=10

CQ2B25-10S
10
Standard Rod End Female Thread
SMC
40
B Through Hole Standard
38
40
25
Single Acting
Rc
–
£30.93

Available to Order

M332-48188

SMC Compact Cylinder 40 Str=5

CDQ2B40TF-5TZ
5
–
SMC
–
Through Hole Standard
–
–
40
Single Acting
–
–
£62.39

Available to Order

M332-48188

SMC Compact Cylinder 40 Str=5

CDQ2A40TF-5TZ
5
–
SMC
–
Both Ends Tapped
–
–
40
Single Acting
–
–
£62.39

Available to Order

M332-48188

SMC Compact Cylinder 40 Str=5

CQ2B40TF-5TZ
5
–
SMC
52
B Through Hole Standard
57
46.5
40
Single Acting
–
–
£45.22

Available to Order

M332-48188

COMPACT CYLINDER 50 STR=10

CQ2B50TF-10TZ
10
–
SMC
–
Through Hole Standard
–
–
50
Single Acting
–
–
£57.60

Available to Order

M332-48188

SMC Compact Cylinder 40 Str=5

CDQ2A40TF-5SZ
5
–
SMC
–
Both Ends Tapped
–
–
40
Single Acting
G 32
–
£62.39

Available to Order

M332-48188

SMC Compact Cylinder 12 Str=10

CDQ2B12-10TZ
10
Standard
SMC
33
Through Hole Standard
28
56
12
Single Acting
–
–
£25.13

Available to Order

M332-48188

COMPACT CYLINDER 20 STR=10

CQ2B20-10T
10
–
SMC
–
B Through Hole Standard
–
–
20
Single Acting
–
–
£29.31

Available to Order

M332-48188

SMC Compact Cylinder 40 Str=10

CQ2A40TF-10TZ
10
Standard
SMC
–
Both Ends Tapped
–
–
40
Single Acting
G 32
–
£47.33

Available to Order

M332-48188

SMC Compact Cylinder 32 Str=10

CDQ2B32TF-10TZ
10
Standard
SMC
–
Through Hole Standard
–
–
32
Single Acting
G 32
Built-in
£48.34

Available to Order

M332-48188

SMC Compact Cylinder 12 Str=5

CDQ2A12-5TZ
5
–
SMC
25
Both Ends Tapped
46
25
12
Single Acting
–
–
£21.84

Available to Order

M332-48188

SMC Compact Cylinder 20 Str=5

CQ2B20-5T
5
–
SMC
36
B Through Hole Standard
34
36
20
–
–
–
£27.51

Available to Order

M332-48188

SMC Compact Cylinder 12 Str=10

CQ2B12-10S
10
–
SMC
31
B Through Hole Standard
25
25
12
Single Acting Spring Return
–
–
£22.31

Available to Order

M332-48188

SMC Compact Cylinder 50 Str=20

CQ2B50TF-20TZ
20
Standard Rod End Female Thread
SMC
71
B Through Hole Standard
79
64
50
–
–
–
£59.65

Available to Order

M332-48188

SMC Compact Cylinder 50 Str=10

CDQ2A50TF-10TZ
10
–
SMC
–
Both Ends Tapped
–
–
50
Single Acting
G 32
–
£70.07

Available to Order

M332-48188

SMC Compact Cylinder 32 Str=10

CDQ2A32TF-10SZ
10
–
SMC
–
Both Ends Tapped
–
–
32
Single Acting
–
–
£48.34

Available to Order

View all 86 variants
