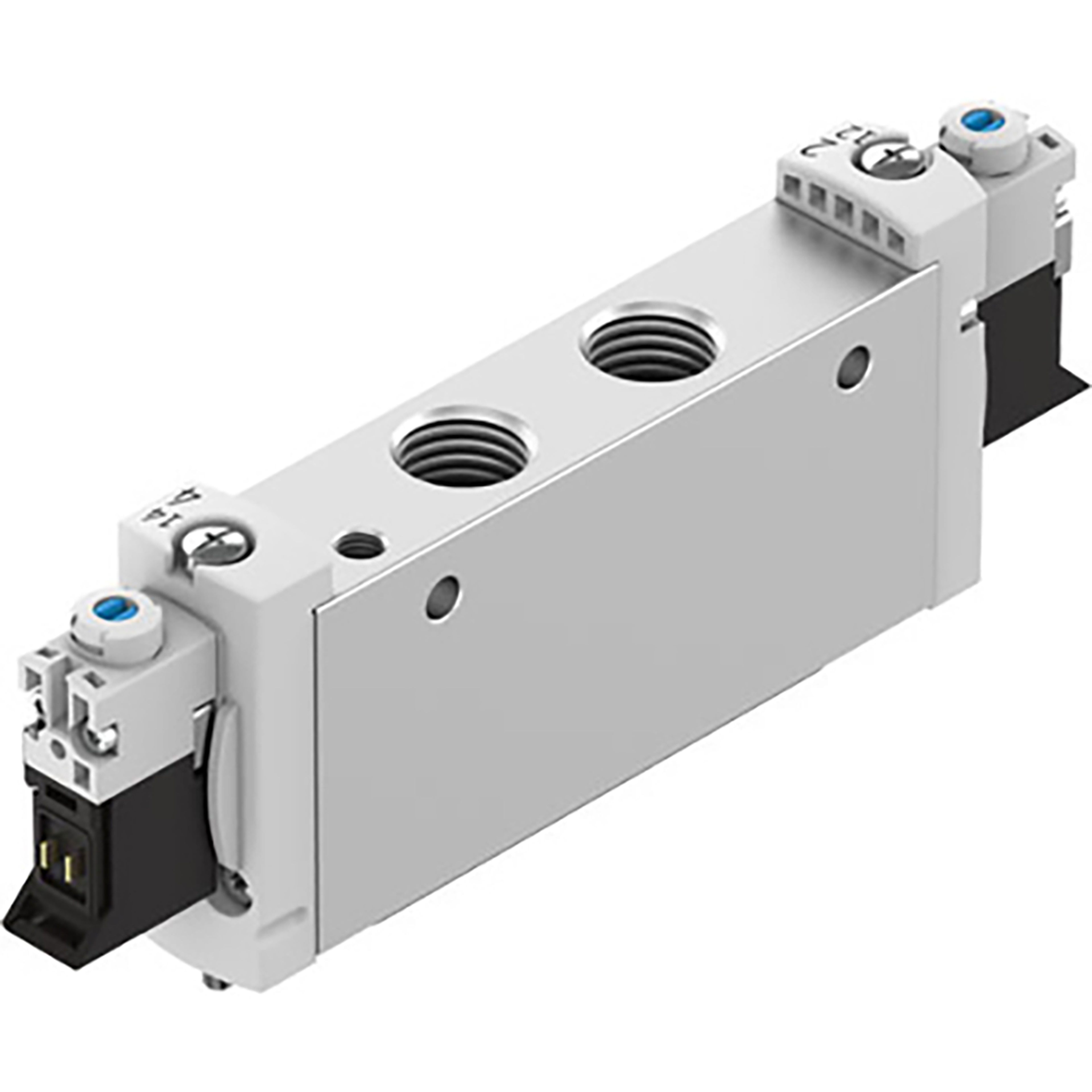

Festo VUVG-L10A-P53C-ZT-M3-1P3
Product Code: 566445Manufacturer Code: VUVG-L10A-P53C-ZT-M3-1P3...
Available to Order
Details
Working Pressure bar
-0.9 to 10
Voltage
24 V DC
Working Temperature
-5°C to +60°C
Thread Size
M3
Seal Material
Nitrile
Size mm
10
Function
5/3 Normally Closed
Brand
Festo
Thread Type
Metric
Material
Wrought Aluminium Alloy
Actuation
Electrical
Flow LPM
90
Specification
Solenoid Valve Vuvg-L10A-P53C-Zt-M3-1P3 Valve Function=5/3 Closed, Type of Actuation=Electrical, Valve Size=10 Mm, Standard Nominal Flow Rate=90 L/Min, Operating Pressure=-0,9 - 10 bar, Festo
Additional Variants
Product Name
Product Code
Thread Size
Size mm
Thread Type
Flow LPM
Actuation
List Price
1/4"
18
BSPP
1200
Electrical
Available to Order
1/8"
14
BSPP
620 to 650
Electrical, Mechanical Spring
Available to Order
M5
10
Metric
210
Electrical, Mechanical Spring
Available to Order
M7
10
Metric
300 to 320
Electrical, Mechanical Spring
Available to Order
