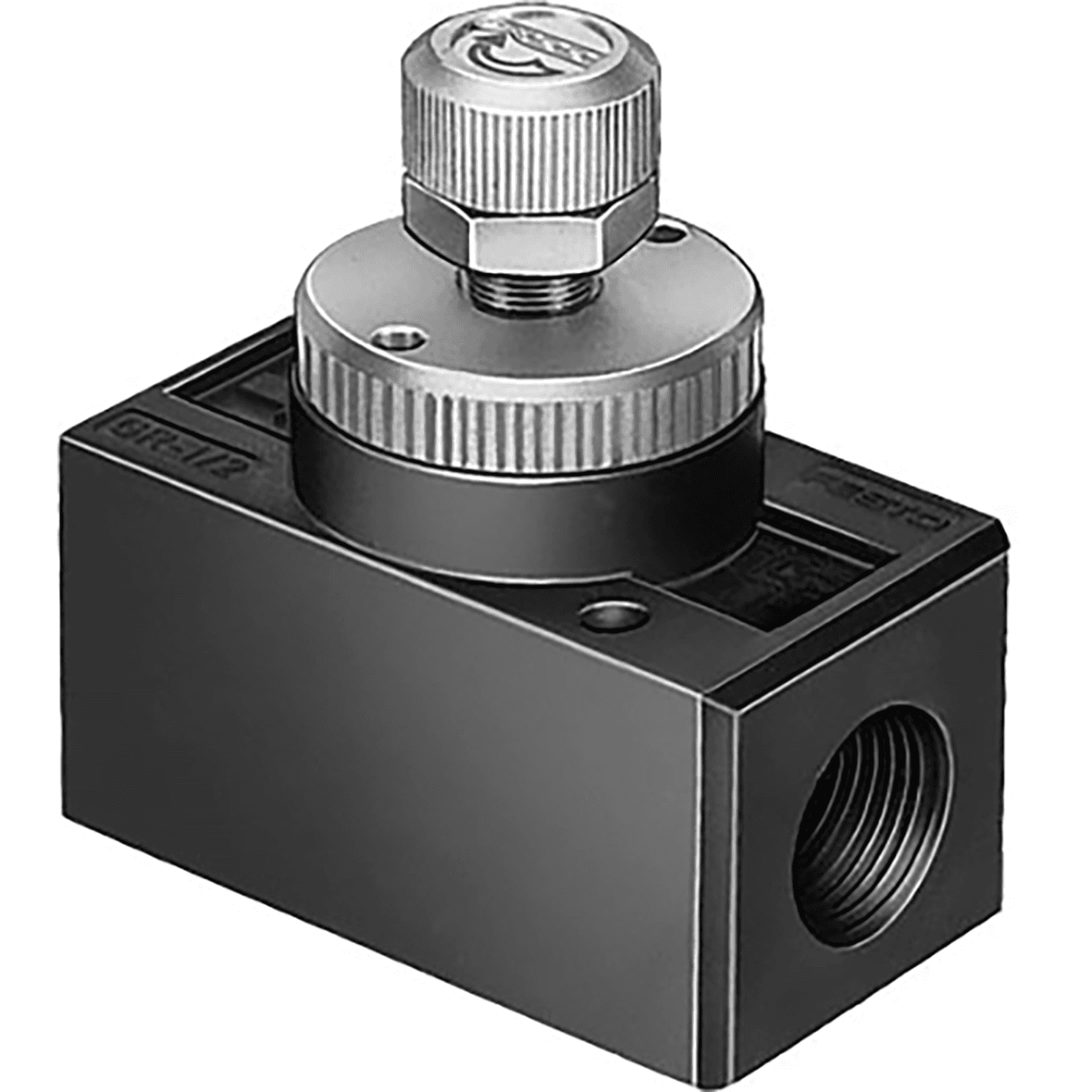

Festo Gr-1/2 1 Way Control Valve
Product Code: 3720Manufacturer Code: GR-1/2...
Available to Order
Details
Thread Size
1/2"
Working Pressure bar
0.1 to 10
Flow LPM
1620
Thread Type
BSPP
Material
Die-cast Zinc
Working Temperature
-20�C to +75�C
Brand
Festo
Thread Gender
Female
Specification
One-Way Flow Control Valve Gr-1/2 with Flow Adjustable In One Direction. Valve Function=One-Way Flow Control Function, Pneumatic Connection, Port 1=G1/2, Pneumatic Connection, Port 2=G1/2, Adjusting Element=Knurled Screw, Mounting Type=With Through Hole, Festo
Additional Variants
Product Name
Product Code
Material
Seal Material
Working Temperature
Working Pressure bar
Thread Size
Flow LPM
Thread Type
List Price
Wrought Aluminium Alloy
Nitrile
-10�C to +60�C
0.3 to 15
3/4"
3300
BSPP
Available to Order
Wrought Aluminium Alloy
Nitrile
-20°C to +60°C
0.5 to 10
1/8"
210
BSPP
Available to Order
Wrought Aluminium Alloy
Nitrile
-10°C to +60°C
0.3 to 8
M3
29.5
Metric
Available to Order
Wrought Aluminium Alloy
Nitrile
-20°C to +60°C
0.5 to 10
M5
115
Metric
Available to Order
Die-cast Zinc
–
-20�C to +75�C
0.1 to 10
3/8"
1010
BSPP
Available to Order
Die-cast Zinc
–
-20�C to +75�C
0.1 to 10
1/4"
420
BSPP
Available to Order
