Festo VZXF-L-M22C-M-B-N1-240-M1-V4B2T-50-10
Product Code: 3539785Manufacturer Code: VZXF-L-M22C-M-B-N1-240-M1-V4B2T-50-10
...
Available to Order
Details
Flow LPM
12100
Thread Type
NPT
Seal Material
PTFE
Working Pressure bar
6 to 10
Working Temperature
-40°C to +200°C
Thread Size
1"
Brand
Festo
Function
2 Way Normally Closed
Micron
200
Nominal Bore mm
24
Material
Cast Stainless Steel
Thread Gender
Female
Specification

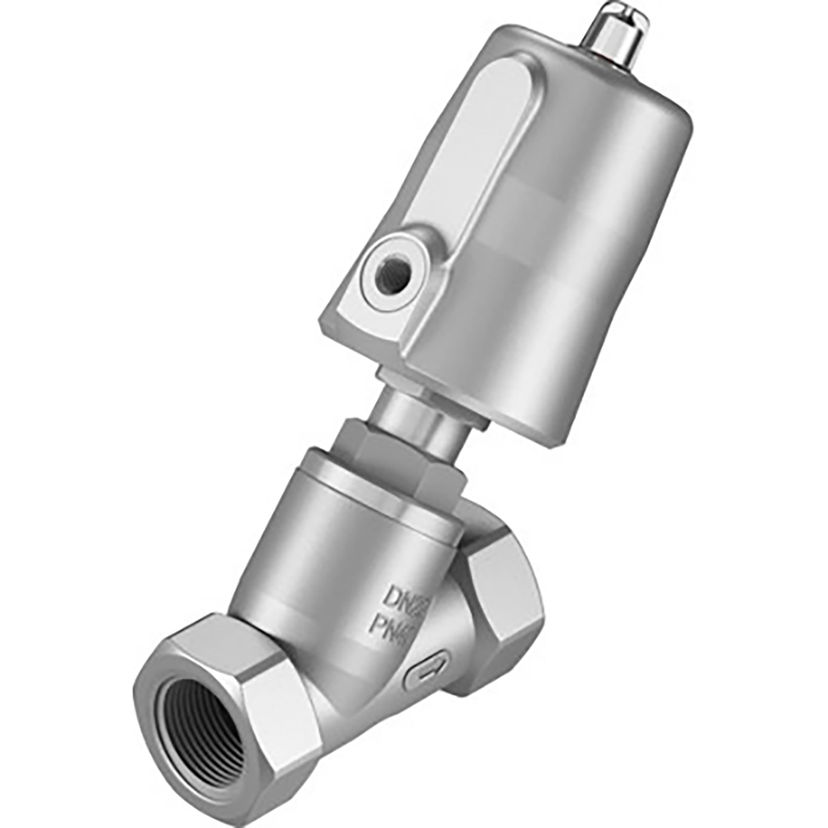

Angle Seat Valve Vzxf-L-M22C-M-B-N1-240-M1-V4B2T-50-10 Pneumatically Actuated Angle Seat Valve In Stainless Steel. Under Seat Version, Safety Position Closed, Npt Thread, Nominal Width 1". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Additional Variants
Product Name
Product Code
Flow LPM
Nominal Bore mm
Thread Size
Buy Price
7150
18
3/4"
£225.72
Available to Order
21450
45
2"
£481.29
Available to Order
19250
35
1.1/2"
£337.12
Available to Order
11770
31
1.1/4"
£322.75
Available to Order
