Festo VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
Product Code: 3535619Manufacturer Code: VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
...
Available to Order
Details
Thread Size
1/2"
Thread Type
BSPP
Flow LPM
3850
Nominal Bore mm
12
Seal Material
PTFE
Working Pressure bar
6 to 10
Material
Red Brass
Working Temperature
-40°C to +200°C
Brand
Festo
Function
2 Way Normally Closed
Micron
200
Thread Gender
Female
Specification

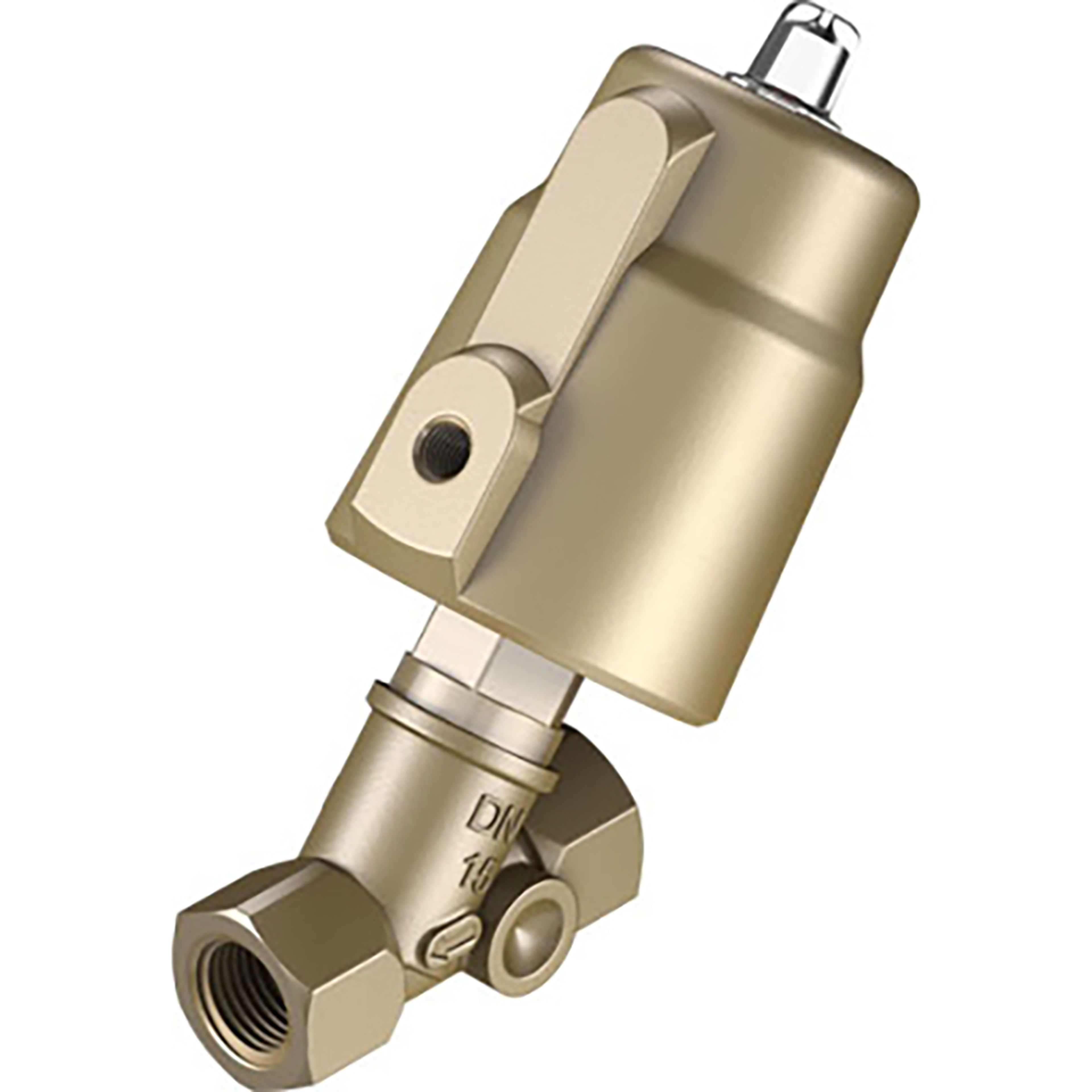

Angle Seat Valve Vzxf-L-M22C-M-A-G12-120-M1-H3B1T-50-16 Pneumatically Actuated Angle Seat Valve In Red Brass. Over Seat Version, Safety Position Closed, G Thread, Nominal Width 1/2". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Additional Variants
Product Name
Product Code
Thread Size
Nominal Bore mm
Flow LPM
Buy Price
2"
43
30800
£282.23
Available to Order
1.1/2"
35
25300
£227.01
Available to Order
1"
23
11880
£153.27
Available to Order
1.1/4"
29
20900
£200.16
Available to Order
3/4"
16
7370
£139.30
Available to Order
