Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E
Product Code: 3412425Manufacturer Code: VZQA-C-M22C-15-S5S5-ALV4E-6-E
...
Available to Order
Details
Working Pressure bar
3.5 to 6
Function
2/2 Normally Closed, Monostable
Actuation
Pneumatic, Mechanical Spring
Working Temperature
-5°C to +100°C
Flow LPM
11.68
Brand
Festo
Bowl Material
PA6
Material
Wrought Aluminium Alloy
Seal Material
Viton
Specification

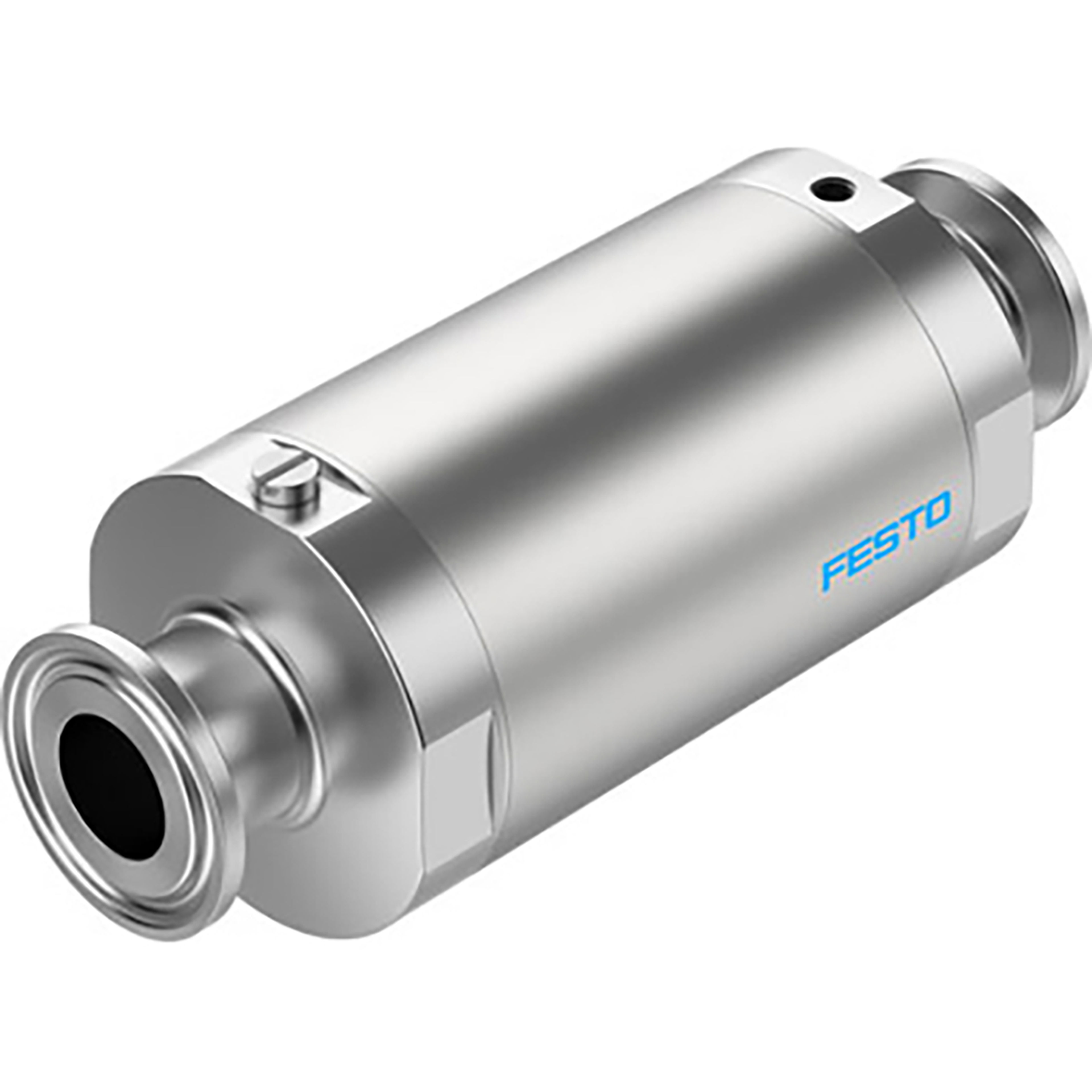

Pinch Valve Vzqa-C-M22C-15-S5S5-Alv4E-6-E Pneumatically Actuated Pinch Valve In Aluminium, Safety Position Closed, Clamping Nozzle Connection, End-Position Sensing, Dn15. Design Structure=Pneumatically Actuated Pinch Valve, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
