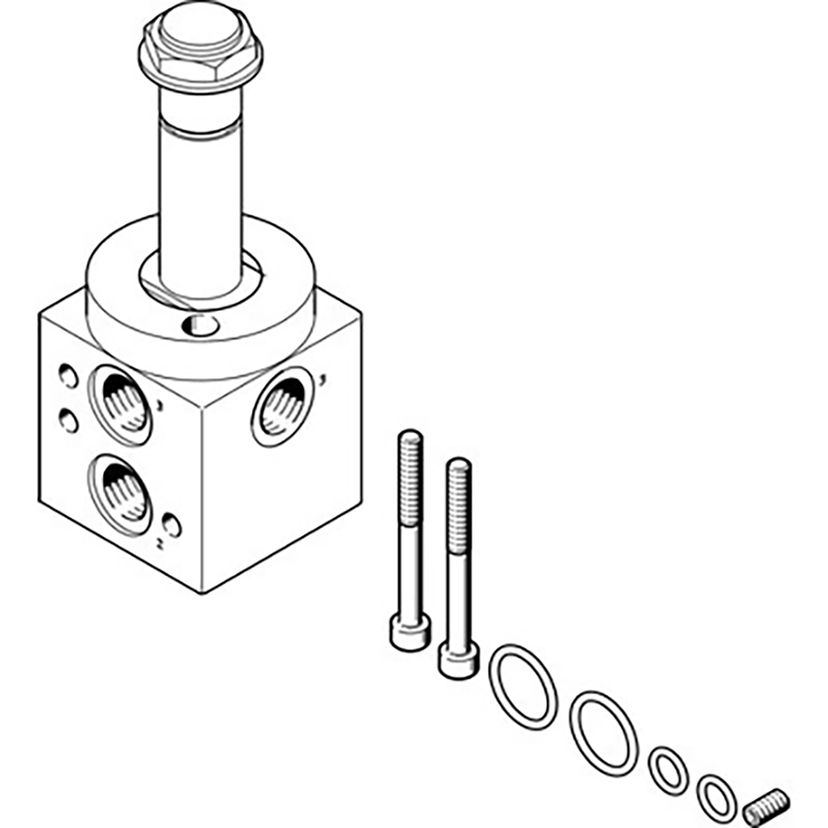

Festo VOFD-L50T-M32-MN-FGP14-10-F10 Valve
Product Code: 4515000Manufacturer Code: VOFD-L50T-M32-MN-FGP14-10-F10
...
Details
Thread Type B
BSPP
Flow LPM
493
Material
Aluminium
Working Temperature
-25°C to +60°C
Thread Size B
1/4"
Seal Material
Nitrile
Actuation
Electrical, Mechanical Spring
Flange Size Inch
14"
Brand
Festo
Function
3/2 Normally Closed, Monostable
Thread Type A
Metric
Working Pressure bar
0 to 10
Thread Size A
M5
Specification
Valve Vofd-L50T-M32-Mn-Fgp14-10-F10 Directly Actuated, 5 Mm Nominal Width, F10 Armature System. Namur+ Valve Function=3/2 Closed, Monostable, Type of Actuation=Electrical, Width=50,5 Mm, Standard Nominal Flow Rate=493 L/Min, Operating Pressure=0 - 10 bar, Festo
