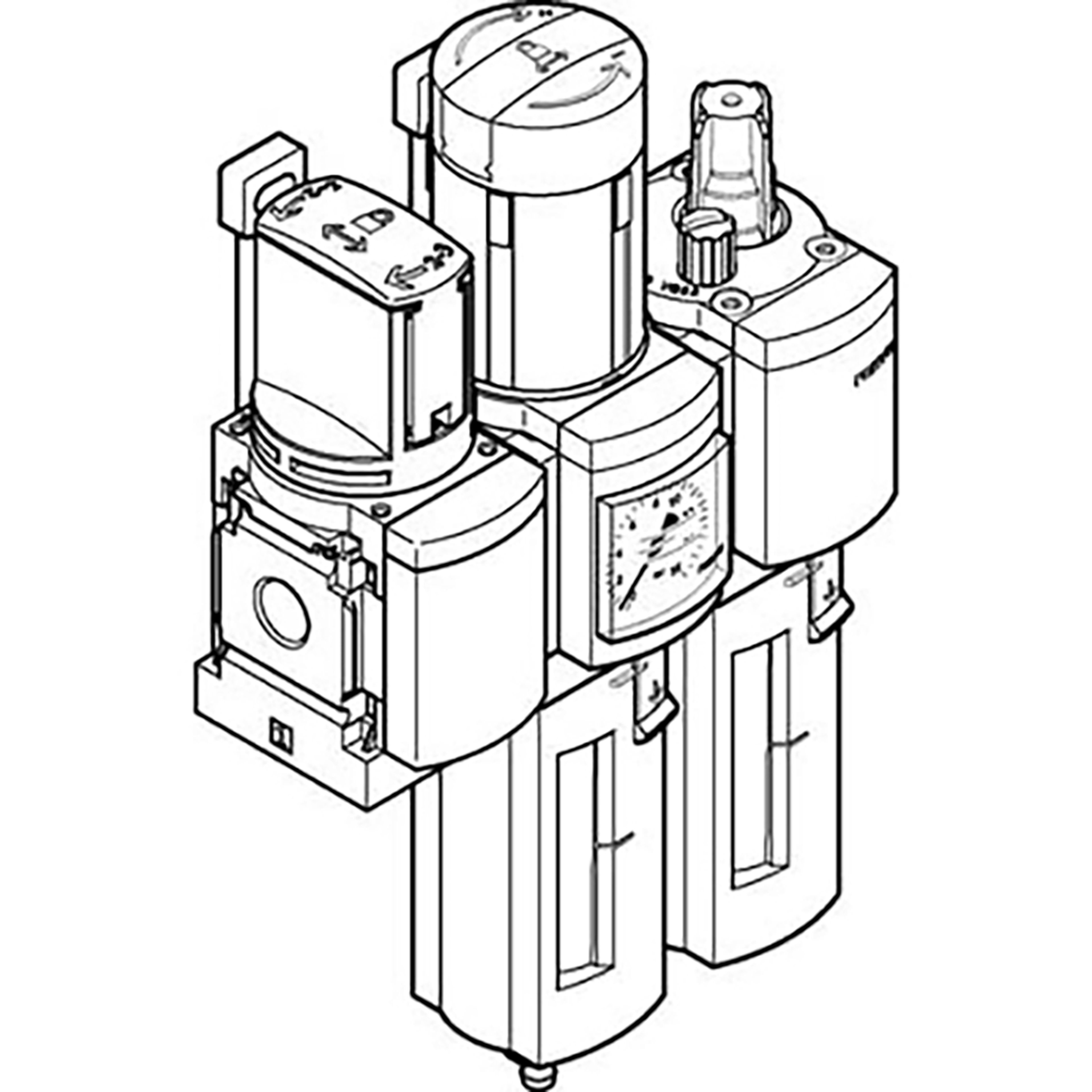

Festo 1/2" Service Unit FRL 40 MM
Product Code: 542278Manufacturer Code: MSB6-1/2:C3J2M1-WP
...
Available to Order
Details
Thread Size
1/2"
Working Temperature
-10°C to +60°C
Drain Type
Fully Automatic
Series
MS
Thread Type
BSPP
Flow LPM
3100
Working Pressure bar
1 to 12
Mounting
Vertical
Bowl Material
Plastic
Brand
Festo
Material
Die-cast Aluminium
Micron
40
Size
6"
Bowl Type
Plastic Bowl Guard
Thread Gender
Female
Specification
Service Unit Combination MSB6-1/2:C3J2M1-Wp Comprising Manual On-Off Valve, Filter Regulator, Lubricator, Wall Mounting Plate. Maximum Output Pressure 12 bar, 40 µm Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Fully Automatic Condensate Drain, Flow Direction From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 µm, Festo
Additional Variants
Product Name
Product Code
Drain Type
Thread Size
Size
Flow LPM
Buy Price
Manual Rotary
1/2"
6
3100
£275.36
Available to Order
Manual Rotary
1/4"
4
750
£211.33
Available to Order
