Festo 1/2" Filter Regulator Manual On-Off Valve

Product Code: 542287Manufacturer Code: MSB6-1/2:C3J4D1A1F3-WP



...

Details

Watt
1.5
Thread Size
1/2"
Series
MS
Voltage
24V DC
Thread Type
BSPP
Working Temperature
+5°C to +60°C
Mounting
Vertical
Micron
5
Bowl Material
Plastic
Brand
Festo
Material
Die-cast Aluminium
Drain Type
Auto
Flow LPM
3000
Working Pressure bar
4 to 12
Size
6"
Bowl Type
Plastic Bowl Guard
Thread Gender
Female

Specification

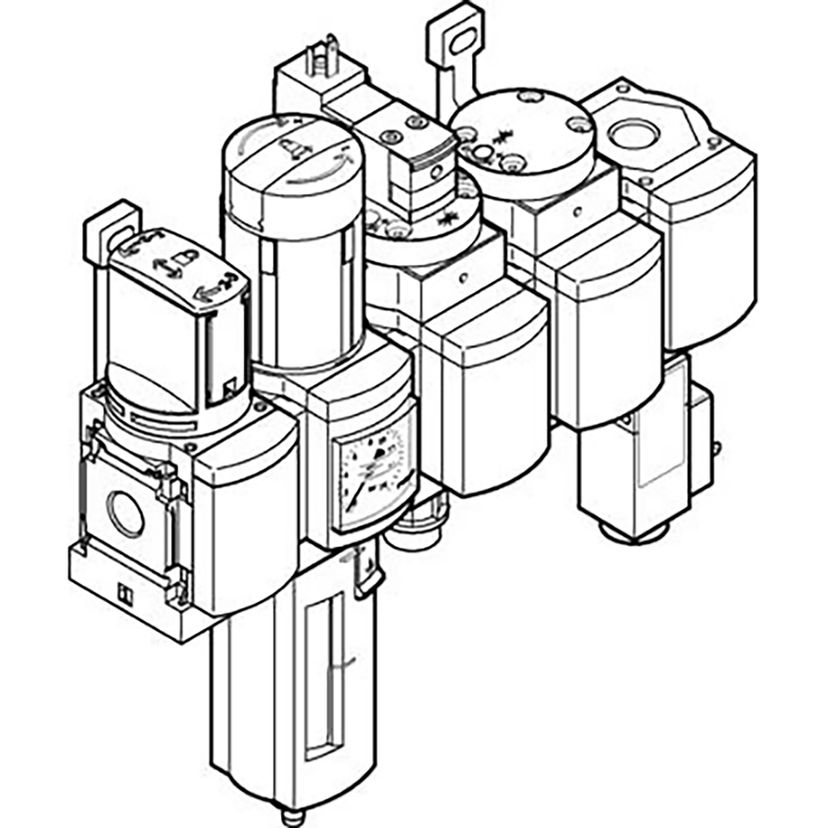

Service Unit Combination MSB6-1/2:C3J4D1A1F3-Wp Comprising Manual On-Off Valve, Filter Regulator, Electrical On-Off Valve, Pneumatic Soft-Start Valve, Branching Module with Pressure Switch without Display, Wall Mounting Plate. Maximum Output Pressure 12 bar, 5 µm Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Fully Automatic Condensate Drain, Flow Direction From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=5 µm, Festo
