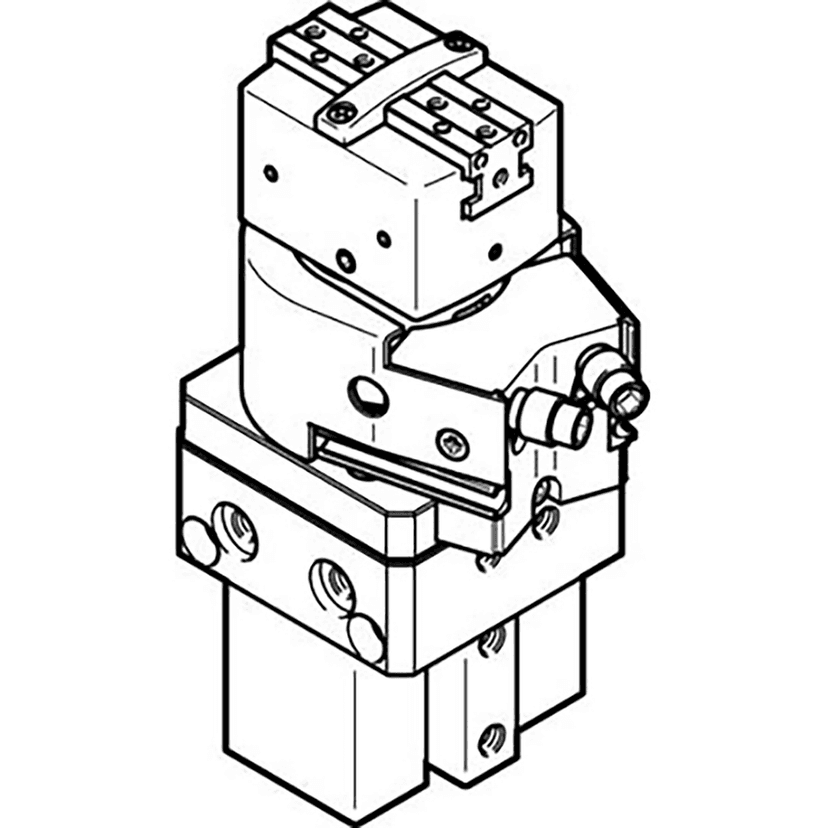

Festo M5 Metric Swivel/Gripper Unit
Product Code: 1187962Manufacturer Code: HGDS-PP-20-P1-A-B
...
Details
Body Material
Wrought Aluminium Alloy
Size mm
20
Magnetic
Y
Seal Material
Nitrile
Cushioning
Pad Cushioning
Working Temperature
+5°C to +60°C
Thread Size
M5
Brand
Festo
Thread Type
Metric
Open Diameter mm
7
Working Pressure bar
3 to 8
Specification
Swivel/Gripper Unit Hgds-Pp-20-P1-A-B with Elastic Cushioning and Fixed Stop. Size=20, Rotation Angle Adjustment Range=0 - 210 Deg, Stroke Per Gripper Jaw=7 Mm, Max. Angular Gripper Jaw Backlash Ax,Ay=0,1 Deg, Max. Gripper Jaw Backlash Sz=0,02 Mm, Festo
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. Code1187956List-Discount-Buy£1,301.34Line£1,301.34Available to Order
- Prod. Code1187959List-Discount-Buy£1,365.62Line£1,365.62
Available to Order
