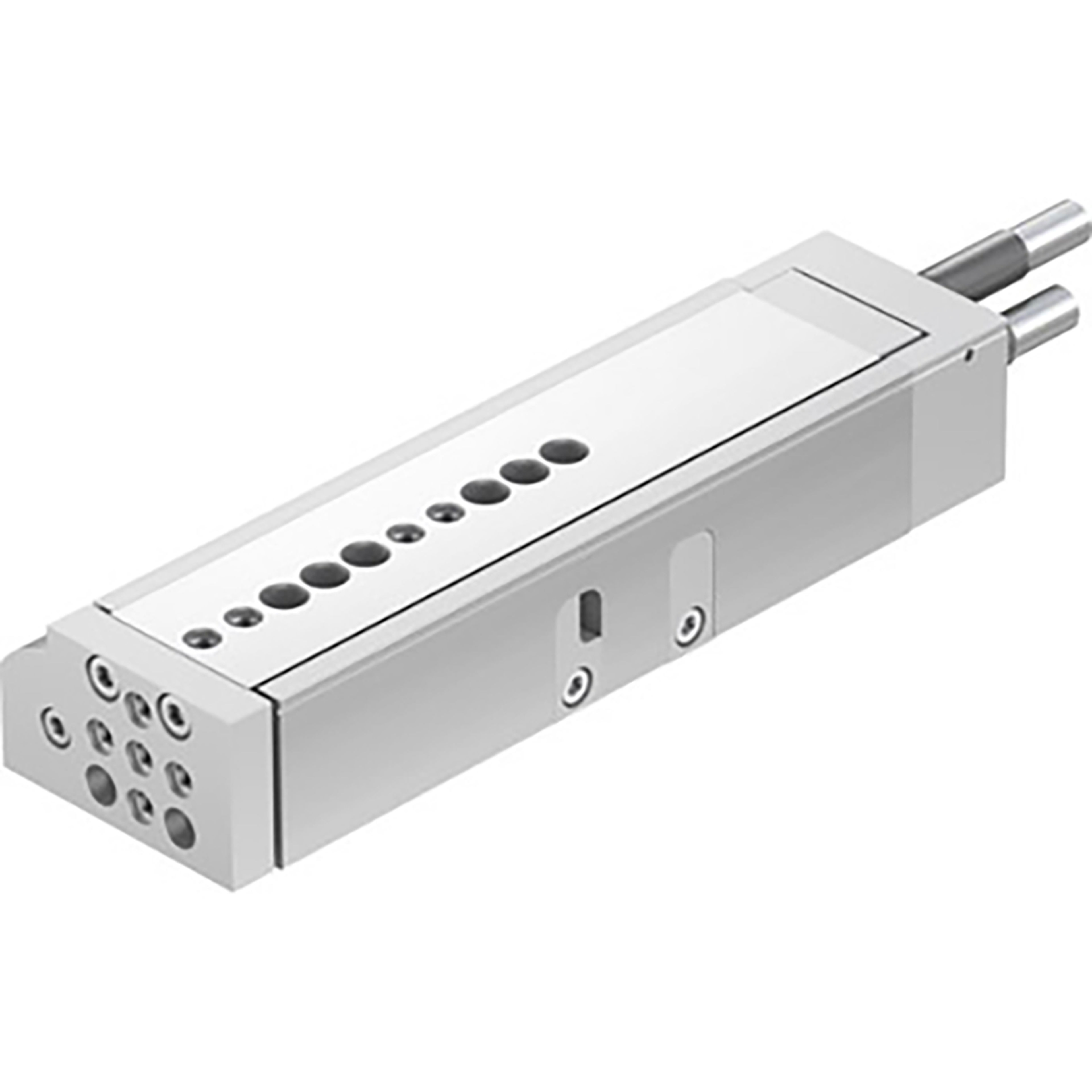

Festo M5 Metric Mini Slide
Product Code: 544003Manufacturer Code: DGSL-16-100-Y3A...
Available to Order
Details
Stroke Length mm
100
Magnetic
Y
Working Temperature
0°C to +60°C
Bore Size mm
20
Seal Material
Nitrile
Thread Size
M5
Brand
Festo
Thread Type
Metric
Working Pressure bar
1 to 8
Cushioning
Self-Adjusting
Piston Rod Material
Stainless Steel
Barrel Material
Wrought Aluminium Alloy
Specification
Mini Slide Dgsl-16-100-Y3A for Position Sensing, with Highly Accurate, Durable Ball-Cage Guide and Very High Repetition Accuracy, Hydraulic Shock Absorbers On Both Sides (Y3). Stroke=100 Mm, Adjustable End position Range/Front Length=71,5 Mm, Adjustable End position Range/Rear Length=38,5 Mm, Piston Diameter=20 Mm, Operating Mode of Drive Unit=Yoke, Festo
Additional Variants
Product Name
Product Code
Stroke Length mm
Working Pressure bar
Bore Size mm
List Price
80
1.5 to 8
12
Available to Order
100
1 to 8
16
Available to Order
50
1 to 8
20
Available to Order
30
1 to 8
20
Available to Order
100
1.5 to 8
12
Available to Order
80
1 to 8
16
Available to Order
150
1 to 8
16
Available to Order
40
1 to 8
16
Available to Order
150
1 to 8
20
Available to Order
30
1.5 to 8
12
Available to Order
80
1 to 8
20
Available to Order
50
1.5 to 8
12
Available to Order
40
1.5 to 8
12
Available to Order
30
1 to 8
16
Available to Order
50
1 to 8
16
Available to Order
40
1 to 8
20
Available to Order
