M326-27390

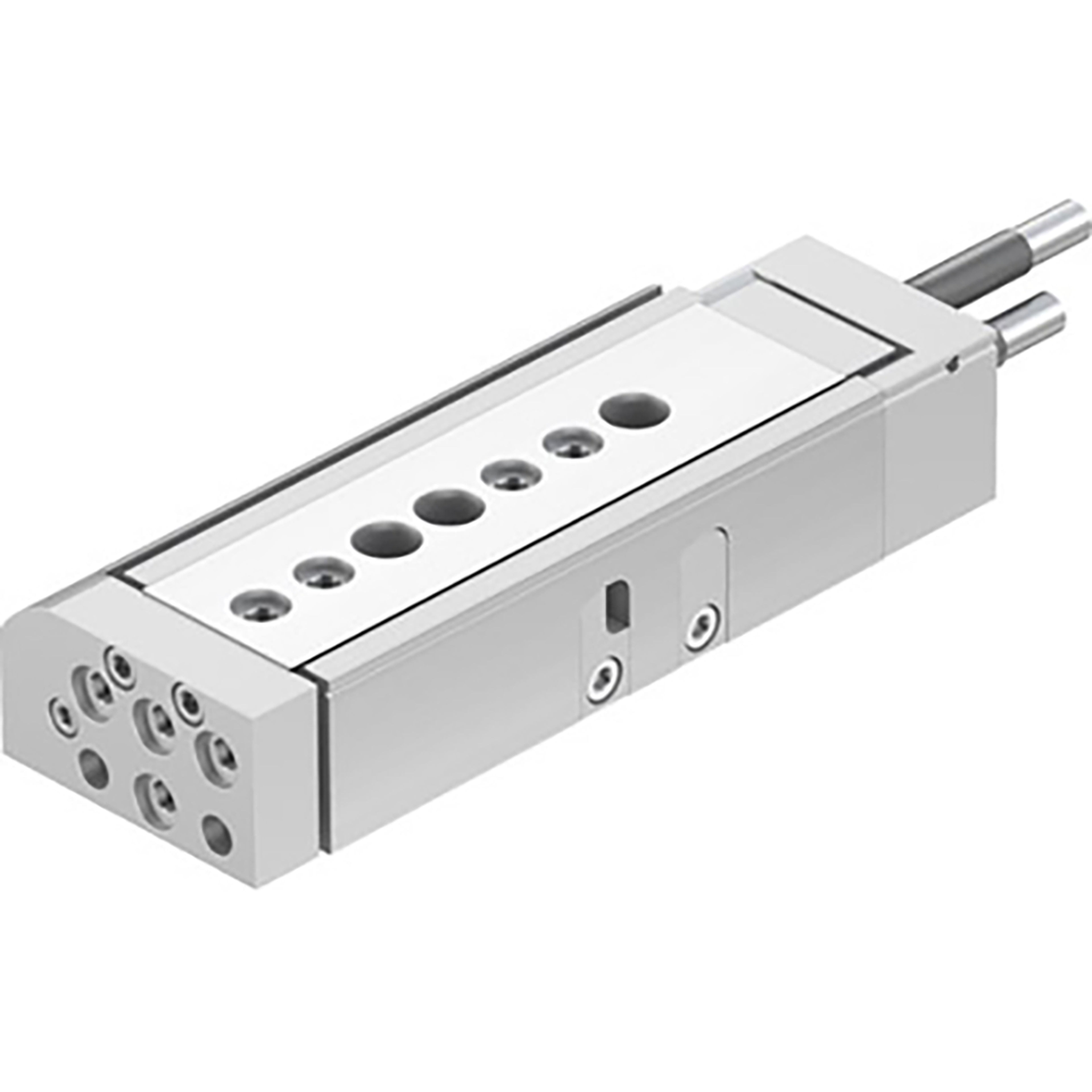

Festo M3 Metric Mini Slide

Product Code: 543939Manufacturer Code: DGSL-8-40-Y3A



...

Details

Magnetic
Y
Working Temperature
0°C to +60°C
Thread Size
M3
Seal Material
Nitrile
Bore Size mm
10
Brand
Festo
Thread Type
Metric
Cushioning
Self-Adjusting
Piston Rod Material
Stainless Steel
Barrel Material
Wrought Aluminium Alloy
Working Pressure bar
1.5 to 8
Stroke Length mm
40

Specification

Mini Slide Dgsl-8-40-Y3A for Position Sensing, with Highly Accurate, Durable Ball-Cage Guide and Very High Repetition Accuracy, Hydraulic Shock Absorbers On Both Sides (Y3). Stroke=40 Mm, Adjustable End position Range/Front Length=31 Mm, Adjustable End position Range/Rear Length=14 Mm, Piston Diameter=10 Mm, Operating Mode of Drive Unit=Yoke, Festo
