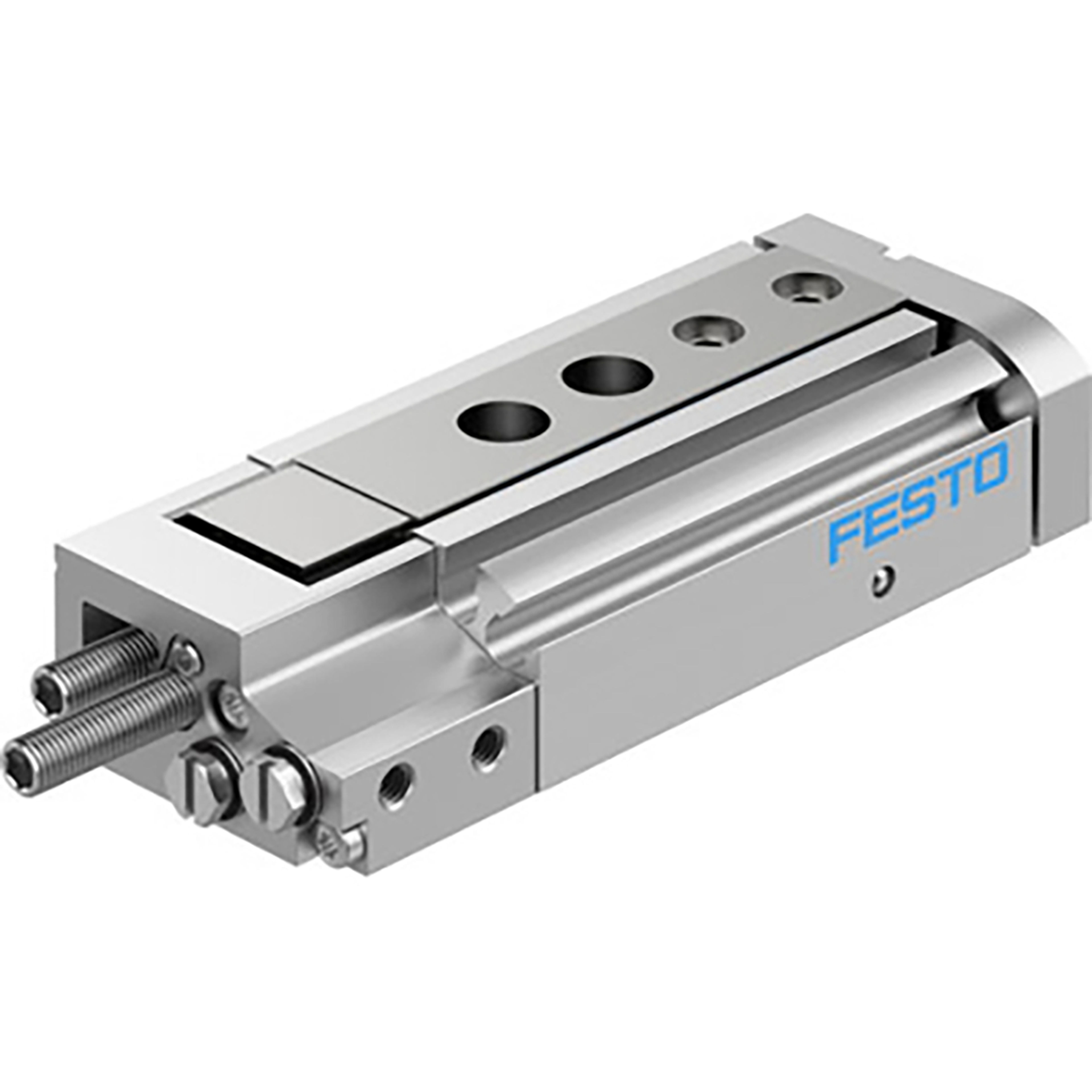

Festo M3 Metric Mini Slide
Product Code: 543921Manufacturer Code: DGSL-6-10-P1A
...
Details
Magnetic
Y
Working Temperature
0°C to +60°C
Thread Size
M3
Seal Material
Nitrile
Bore Size mm
8
Brand
Festo
Cushioning
Adjustable
Thread Type
Metric
Stroke Length mm
10
Piston Rod Material
Stainless Steel
Barrel Material
Wrought Aluminium Alloy
Working Pressure bar
1.5 to 8
Specification
Mini Slide Dgsl-6-10-P1A for Position Sensing, with Highly Accurate, Durable Ball-Cage Guide and Very High Repetition Accuracy, Flexible Damping On Both Sides with Metallic End Position (P1). Stroke=10 Mm, Adjustable End position Range/Front Length=16,5 Mm, Adjustable End position Range/Rear Length=15 Mm, Piston Diameter=8 Mm, Operating Mode of Drive Unit=Yoke, Festo
