Flotec Logo
M326-26335

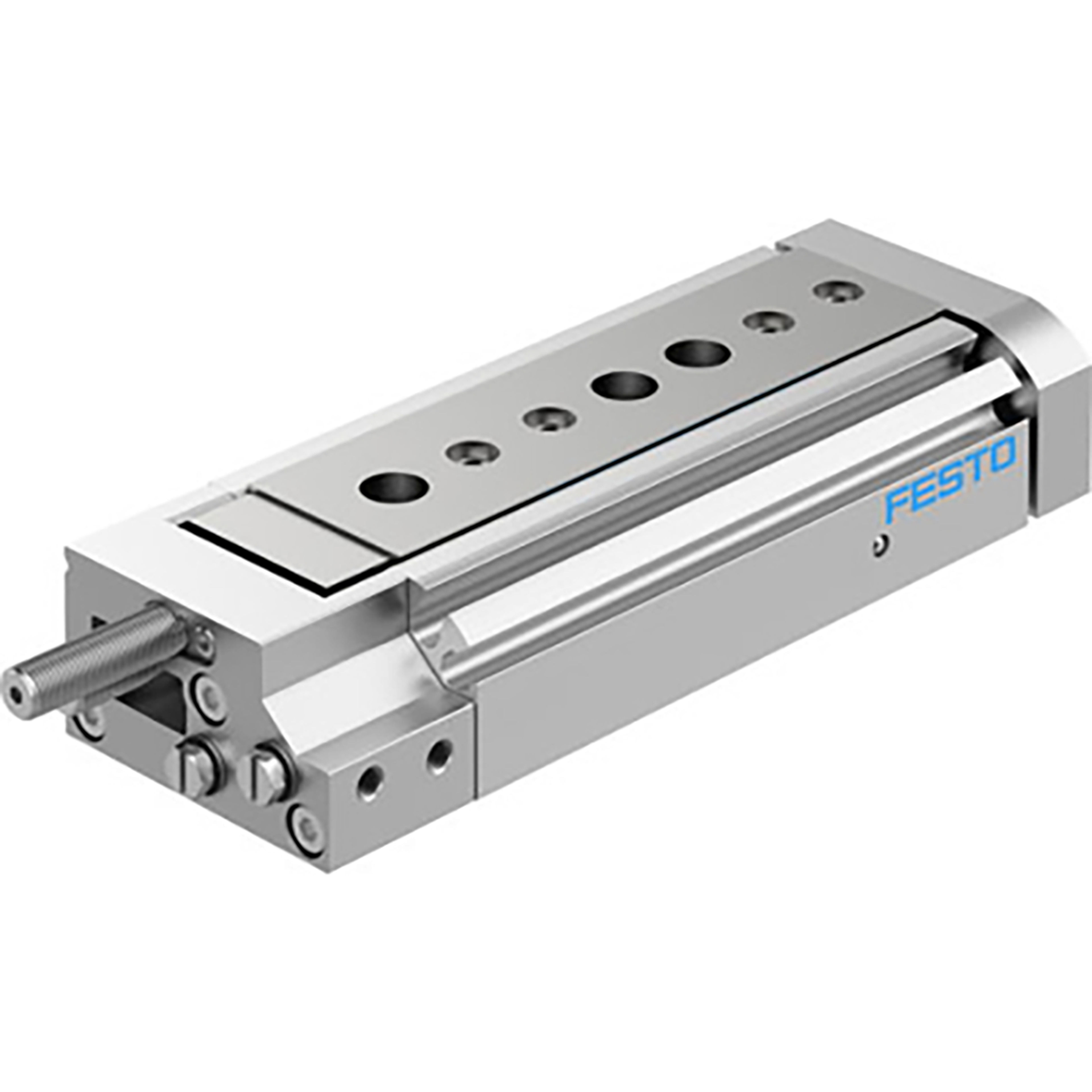

Festo M3 Metric Mini Slide

Product Code: 543929Manufacturer Code: DGSL-8-40-PA



...

Available to Order

Details

Magnetic
Y
Working Temperature
0°C to +60°C
Thread Size
M3
Seal Material
Nitrile
Cushioning
Pad Cushioning
Bore Size mm
10
Brand
Festo
Thread Type
Metric
Piston Rod Material
Stainless Steel
Barrel Material
Wrought Aluminium Alloy
Working Pressure bar
1.5 to 8
Stroke Length mm
40

Specification

Mini Slide Dgsl-8-40-Pa with Position Sensing, Highly Accurate, Durable Ball-Cage Guide, Flexible Damping On Both Sides without Metallic End Position (P). Stroke=40 Mm, Adjustable End position Range/Front Length=35,5 Mm, Adjustable End position Range/Rear Length=18,5 Mm, Piston Diameter=10 Mm, Operating Mode of Drive Unit=Yoke, Festo

Additional Variants

Product Name
Product Code
Stroke Length mm
Bore Size mm
Working Pressure bar
Buy Price
M326-26335
10
8
1.5 to 8
£445.46

Available to Order

M326-26335
20
10
1.5 to 8
£503.26

Available to Order

M326-26335
50
8
1.5 to 8
£577.67

Available to Order

M326-26335
30
10
1.5 to 8
£536.31

Available to Order

M326-26335
30
8
1.5 to 8
£511.58

Available to Order

M326-26335
40
8
1.5 to 8
£544.61

Available to Order

M326-26335
20
6
2.5 to 8
£494.96

Available to Order

M326-26335
10
6
2.5 to 8
£461.93

Available to Order

M326-26335
20
8
1.5 to 8
£478.52

Available to Order

M326-26335
80
10
1.5 to 8
£701.56

Available to Order

M326-26335
30
6
2.5 to 8
£528.03

Available to Order

M326-26335
10
10
1.5 to 8
£470.20

Available to Order

M326-26335
50
10
1.5 to 8
£602.41

Available to Order
