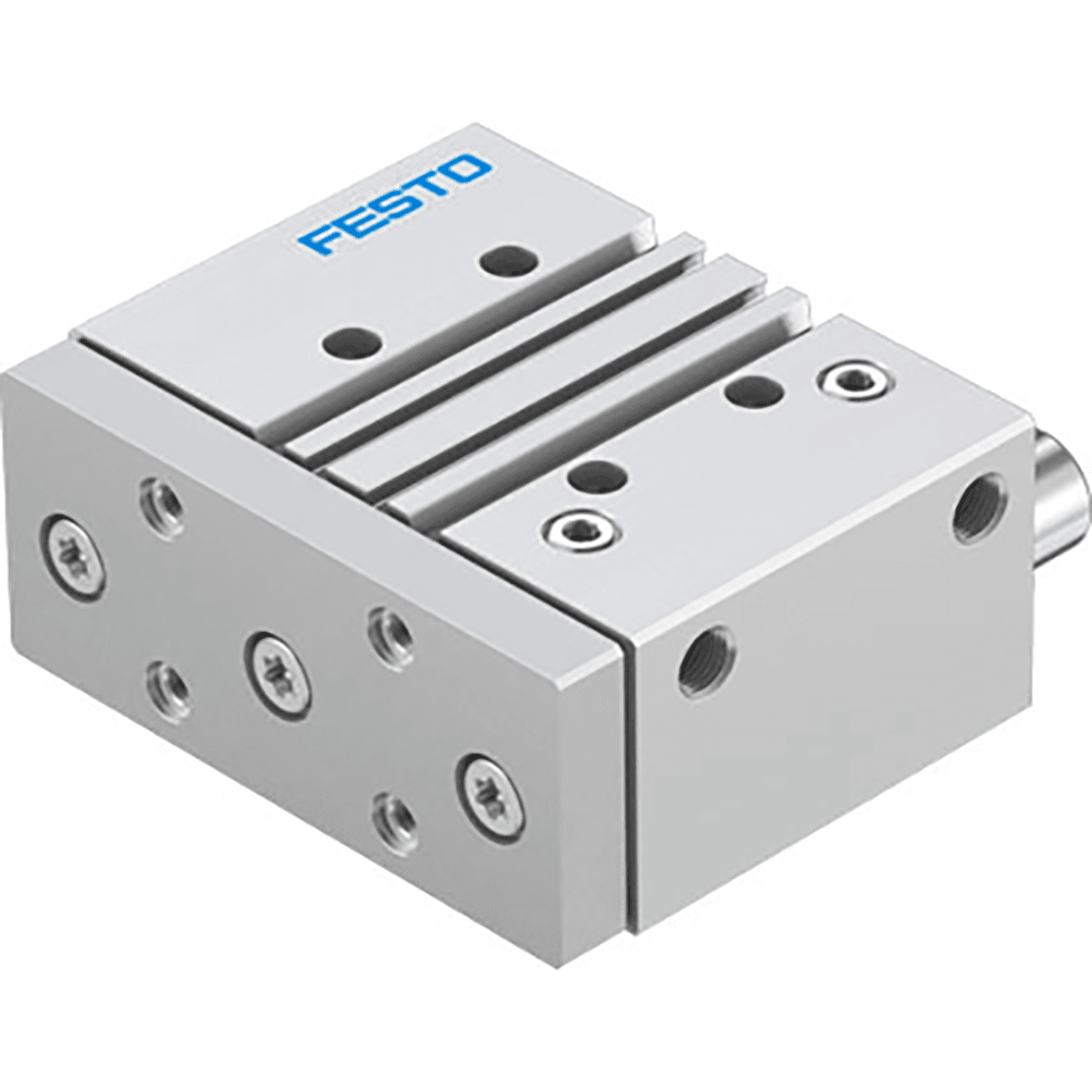

Festo 1/4" Female BSPP Guided Drive
Product Code: 170873Manufacturer Code: DFM-50-80-P-A-GF
...
Available to Order
tech sheet 70199
Details
Magnetic
Y
Thread Size
1/4"
Stroke Length mm
80
Working Pressure bar
1 to 10
Thread Type
BSPP
Seal Material
Nitrile
Cushioning
Pad Cushioning
Bore Size mm
50
Brand
Festo
Piston Rod Material
Stainless Steel
Material
Wrought Aluminium Alloy
Mounting
Any
Working Temperature
-20°C to +80°C
Thread Gender
Female
Specification
Guided Drive Dfm-50-80-P-A-Gf With Integrated Guide. Centre Of Gravity Distance From Working Load To Yoke Plate=50 Mm, Stroke=80 Mm, Piston Diameter=50 Mm, Operating Mode Of Drive Unit=Yoke, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Festo
Drive and guide unit in a single housing. Sturdy and precise. Plain bearing guide. High resistance to torques and lateral forces. Wide range of applications. Selected types in accordance with ATEX directive for potentially explosive atmospheres.
Additional Variants
Product Name
Product Code
Stroke Length mm
Bore Size mm
Buy Price
200
63
£662.90
Immediately Available - 1 in stock
200
50
£612.83
Available to Order
25
50
£399.73
Immediately Available - 1 in stock
100
63
£536.93
Available to Order
50
50
£430.17
Available to Order
25
63
£442.44
Immediately Available - 1 in stock
160
63
£612.50
Available to Order
160
50
£564.14
Available to Order
50
63
£473.94
Immediately Available - 1 in stock
125
63
£568.41
Immediately Available - 1 in stock
80
63
£511.74
Available to Order
100
50
£491.07
Immediately Available - 1 in stock
125
50
£521.50
Available to Order
