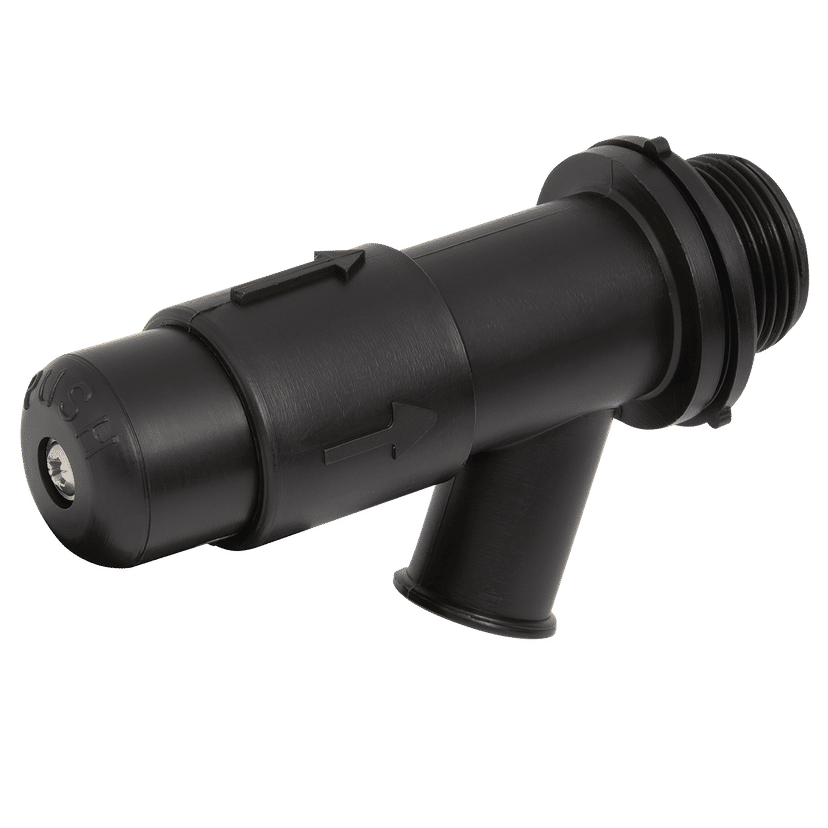

FT Pro 3/4" X 20MM OD Pp Spring Auto Tap
Product Code: 11PP07
...
tech sheet 68761
Details
Thread Size
3/4"
Material
Polypropylene
Thread Type
BSPP
Seal Material
Thermoplastic Elastopollymer
Outside Diameter mm
20
Working Pressure bar
0 to 4
Thread Gender
Male
Maximum Working Temperature
80°C
Brand
FT Pro
Specification
3/4" BSP Parallel Male x 20mm Outside Diameter, Spring Auto Self Close Pour Tap, Thermoplastic Elastopollymer Seal, Polypropylene, Maximum Working Temperature +80°C, Working Pressure 0 to 4 bar, FT Pro
Max counteracting pressure is 4.5 bar from 0 bar operating range. Black polypropylene with EPDM seals as standard. Stainless Steel 302 spring is in separate chamber to flow. TPE thread gasket included. Push button end, to open flow and take hand away to allow self-closure. Guide markings on tap. Suitable for use with static or portable tanks, to prevent unattended liquid loss. Can be used with appropriate chemicals to prevent dangerous spills. Applications: Adopted by many local water authorites to use on emergency supply tankers avoiding unnecessary waste
