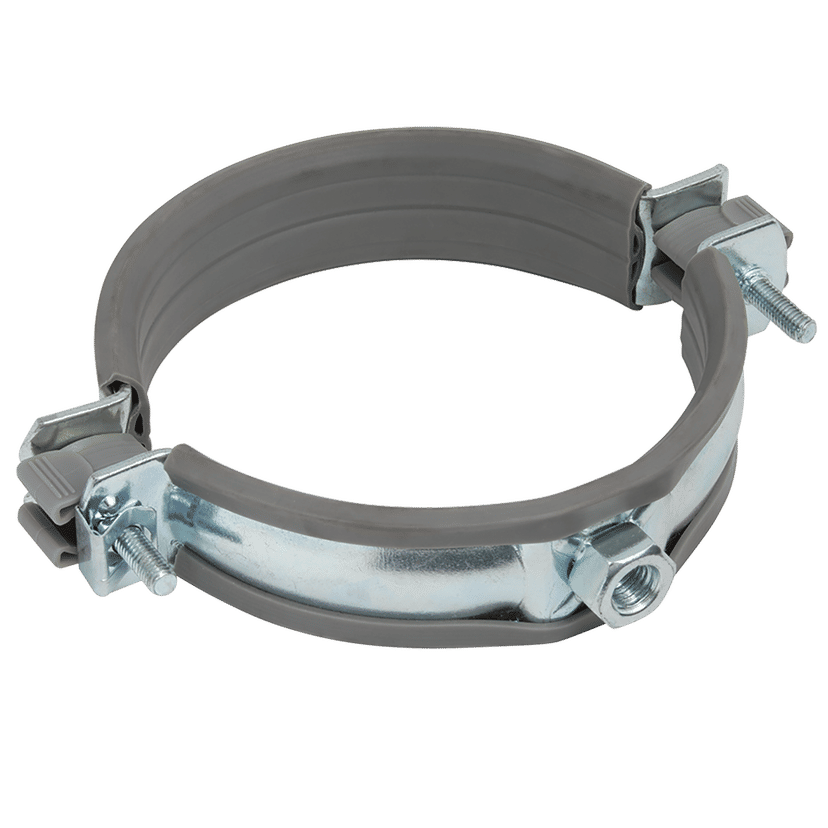

Flamco BSK-I Clip M10 X 250
Product Code: 37368Manufacturer Code: 37334...
Immediately Available - 1 in stock
tech sheet 68756
Details
Working Temperature
-20°C to +100°C
Brand
Flamco
Material
Electro Zinc Plated
Breaking Strain
2000
Thread Size
M10
Nominal Bore mm
250
Specification
M10 Thread Size, 250mm Bore Size, BSK-I, Wall or Ceiling Mounted Pipe Clip, 2000 Newton Breaking Strain, Electro Zinc Plated, Working Temperature -20°C to +100°C, Flamco
BSK-I clips are designed for plastic pipes with special TPE (thermoplastic elastomer) lining. The BSK-I clip has easily removable plastic spacers between the two clip halves and can be transformed into a clenching clip without the need for tools. Advantages: Special TPE lining with excellent low friction properties. Transformable from sliding to clamping with easily removable spacer. Fast assembly thanks to patented click-spring locking system. Noise reduction: 20 dB(A) with spacer, 18 dB(A) without spacer. UV resistant. Electronically zinc plated.
Additional Variants
Product Name
Product Code
Working Temperature
Nominal Bore mm
Number of Gangs
Thread Size
Breaking Strain
List Price
-20°C to +100°C
90
Yes
M10
2000
Immediately Available - 47 in stock
-20°C to +100°C
75
–
M8
2000
Immediately Available - 95 in stock
-20°C to +100°C
16
–
M8
1300
Immediately Available - 149 in stock
-20°C to +100°C
160
Yes
M10
2000
Immediately Available - 27 in stock
-20°C to +100°C
315
–
M10
2000
Immediately Available - 79 in stock
-20°C to +100°C
63
Yes
M8
1300
Immediately Available - 71 in stock
-20°C to +100°C
20
–
M8
1300
Immediately Available - 8 in stock
-20°C to +100°C
75
Yes
M10
2000
Immediately Available - 79 in stock
-20°C to +100°C
90
–
M8
2000
Immediately Available - 77 in stock
