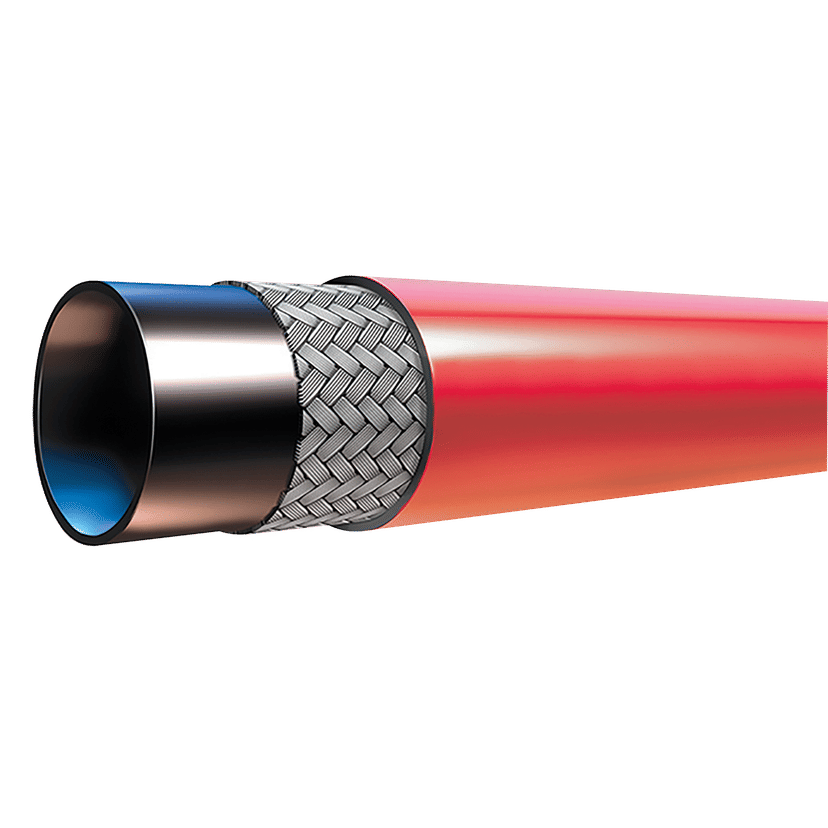

Parker 12.7MM OD X 1/4" ID Multipurpose PUSH-LOK Hose
Product Code: 801PLUS-4-RED-RL
...
tech sheet 68096
Details
Outside Diameter mm
12.7
Material
Nitrile
Maximum Working Pressure bar
24
Brand
Parker
Length Metres
100
Bend Radius mm
65
Working Temperature
-40°C to +100°C
Inside Diameter Inch
1/4"
Hose Diameter (DN)
12.7
Colour
Red
Series
Steel Braided
Specification
12.7mm Outside Diameter x 1/4" Inside Diameter, 801-Plus, Multipurpose, Push-Lok Hose, Red, 65mm Bend Radius, Nitrile Inner, High-tensile Fibre Braid Reinforcement, Working Temperature -40°C to +100°C, Burst Pressure 97 bar, Maximum Working Pressure 24 bar, Parker
801PLUS multipurpose hose has an improved nitrile tube with extended fluid compatability and improved oil compatability and provides quick and easy assembly/dissassembly advantage and the fullest range of colour coding to benefit your operations. Features: Very flexible, wide range of colours, available up to size -16, nitrile inner tube-extended fkuid compatability, improved oil compatibilty. Recommended fluids: Air, water, water-oil emulsions, water-glycpl and mineral based hydraulic lubricating oils.
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. Code801PLUS-8-RED-RLList-Discount-Buy£3,247.11Line£3,247.11Available to Order
- Prod. Code801PLUS-6-RED-RLList-Discount-Buy£2,766.78Line£2,766.78
Available to Order
- Prod. Code801PLUS-10-RED-RList-Discount-Buy£3,339.04Line£3,339.04
Available to Order
- Prod. Code801PLUS-16-RED-RList-Discount-Buy£3,556.69Line£3,556.69
Available to Order
- Prod. Code801PLUS-12-RED-RList-Discount-Buy£3,924.91Line£3,924.91
Available to Order
