Metal Work 40MM Bore X 25MM Stroke Double Acting Liner Series Compact CYL
Product Code: 2900400025CP...
Immediately Available - 2 in stock
Details
Stroke Length mm
25
Brand
Metal Work
Bore Size mm
40
Magnetic
Magnetic
Number of Gangs
Yes
Piston Rod Thread Gender
Female
Specification
40mm Bore x 25mm Stroke, Magnetic, Compact Series Liner, Double Acting, Female Piston Rod, Metal Work Huge Savings! Available for a limited time - while stock lasts

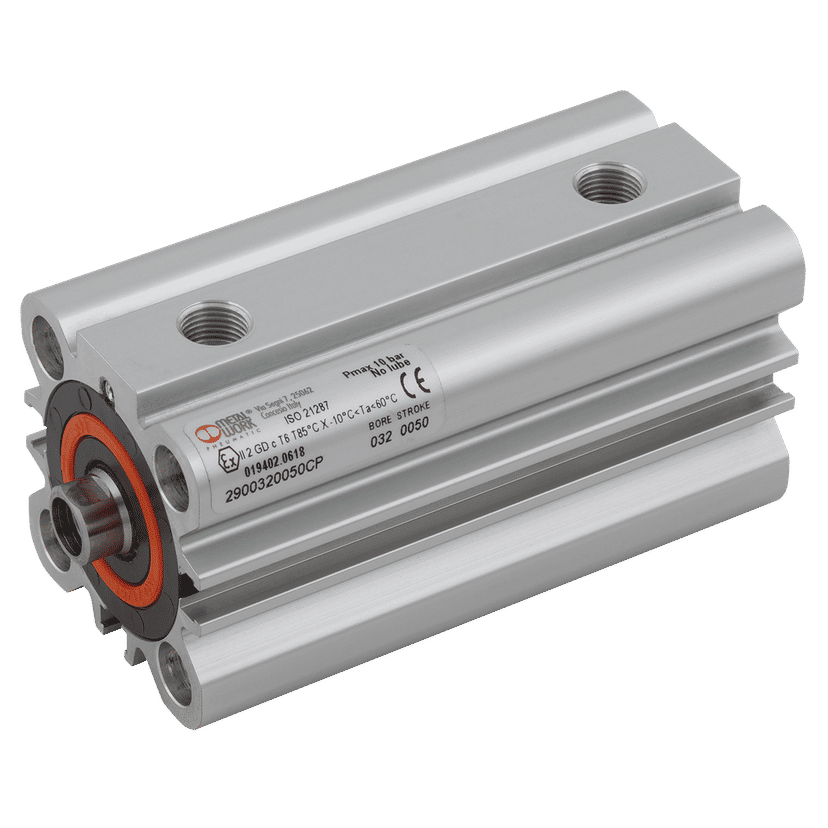

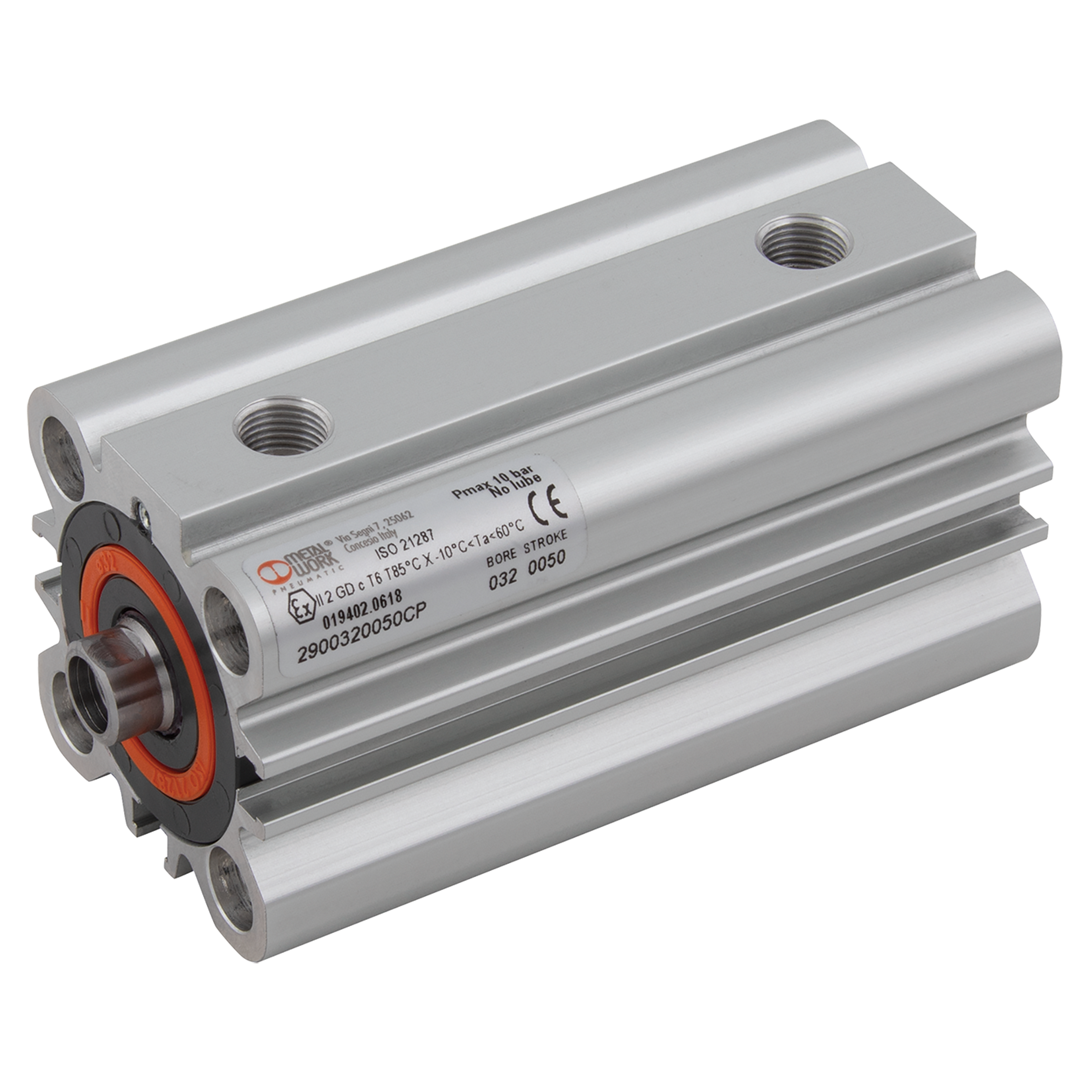

Compact cylinder to ISO 21287, LINER series, available in different versions to meet all possible requirements. Below sizes listed are most popular, if you require an alternative size please contact the sales office. The heads have been eliminated for ease of installation, improved sturdiness and precision. The metal lining is designed to withstand heavy-duty work, tensile stress and impact. Technopolymer parts can withstand dynamic and pneumatic thrust. The lining virtually acts as a "bearing" to which most of user accessories are attached. The wide range of anchors provide numerous fixing points. Retractable magnetic limit switches can be mounted to identify the position in the cylinder grooves.
Additional Variants
Product Name
Product Code
Piston Rod Material
Stroke Length mm
Bore Size mm
List Price
Stainless Steel
50
25
Available to Order
–
40
32
Available to Order
–
15
100
Available to Order
Stainless Steel
5
20
Available to Order
Stainless Steel
15
25
Available to Order
–
25
32
Available to Order
–
15
80
Available to Order
–
20
80
Available to Order
–
10
100
Available to Order
–
20
100
Available to Order
–
15
32
Available to Order
–
40
40
Available to Order
Stainless Steel
10
25
Available to Order
Stainless Steel
40
20
Available to Order
–
5
32
Available to Order
–
20
50
Available to Order
–
10
40
Available to Order
–
20
63
Available to Order
–
10
63
Available to Order
–
15
40
Available to Order
