Norres Protape PUR 330 2"/50-51MM Food 10M
Product Code: 330-0050-0000
...
Immediately Available - 13 in stock
tech sheet 60193
Details
Inside Diameter mm
50
Working Temperature
-40°C to +90°C
Maximum Working Pressure bar
0.82
Vacuum bar
0.220
Brand
Norres
Outside Diameter mm
58
Wall Thickness mm
0.6
Weight Kg per Metre
0.370
Length Metres
10
Specification
58mm Outside Diameter x 50mm Inside Diameter, Food Grade Hose & Ducting, 10 Metres, PROTAPE PUR 330 FOOD, Wall Thickness 0.6mm, Weight 0.370 Kg per Metre, Maximum Vacuum Pressure 0.220 bar, Working Temperature -40°C to +90°C, Working Pressure 0.820 bar, Norres

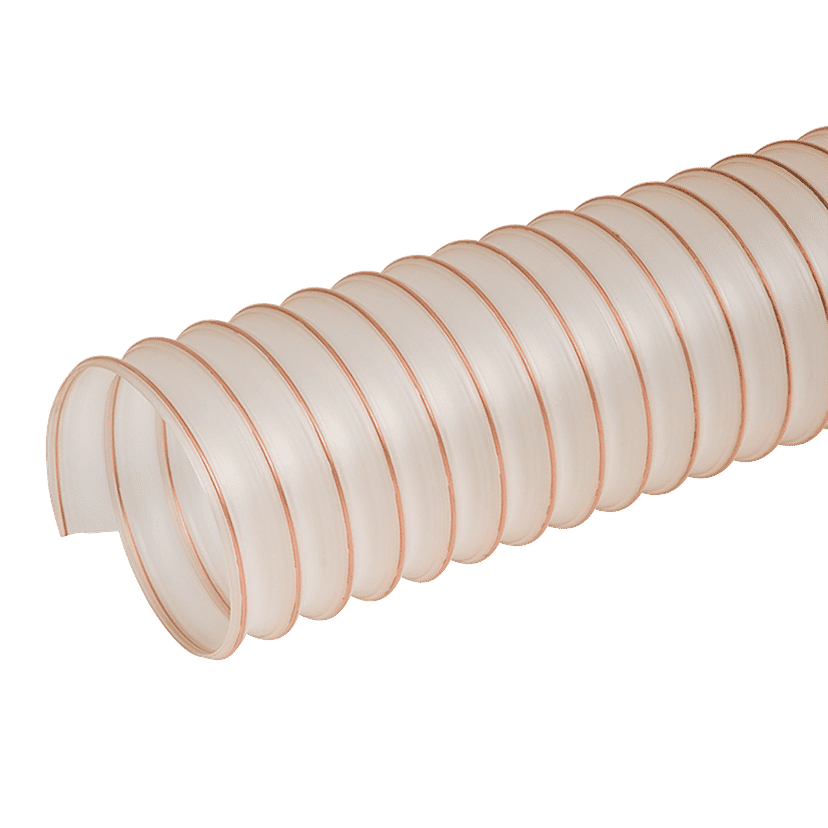

Made from premium food grade ether Pre-PUR polyurethane, reinforced with a spriny steel wire helix. Wall Thickness: 0.6mm approx. Applications: Suction and transport hose for abrasive materials including food products e.g. powders, granules etc. Food grade wall (refer to Tech Sheet for food approvals information). Lightweight, high abrasion resistance. High tensile strength and tear resistance. Optimised flow (observe direction of flow arrow). Small Bend randius. Good resistance to microbes and hydrolysis. Good resitance to oil, petrol and chemicals. Wire spiral reinforcement can be earthed. Use clamp type 212/212EC (refer to page 488).
Additional Variants
Product Name
Product Code
Outside Diameter mm
Vacuum bar
Weight Kg per Metre
Maximum Working Pressure bar
Inside Diameter mm
Buy Price
83
0.145
0.530
0.55
75
£413.22
Available to Order
108
0.080
0.670
0.415
100
£488.19
Immediately Available - 2 in stock
208
0.030
1.330
0.21
200
£1,040.30
Available to Order
73
0.165
0.460
0.635
63
£396.89
Available to Order
158
0.055
0.990
0.275
150
£759.02
Immediately Available - 8 in stock
133
0.065
0.830
0.335
125
£637.24
Immediately Available - 1 in stock
45
0.355
0.220
1.075
38
£298.08
Immediately Available - 3 in stock
