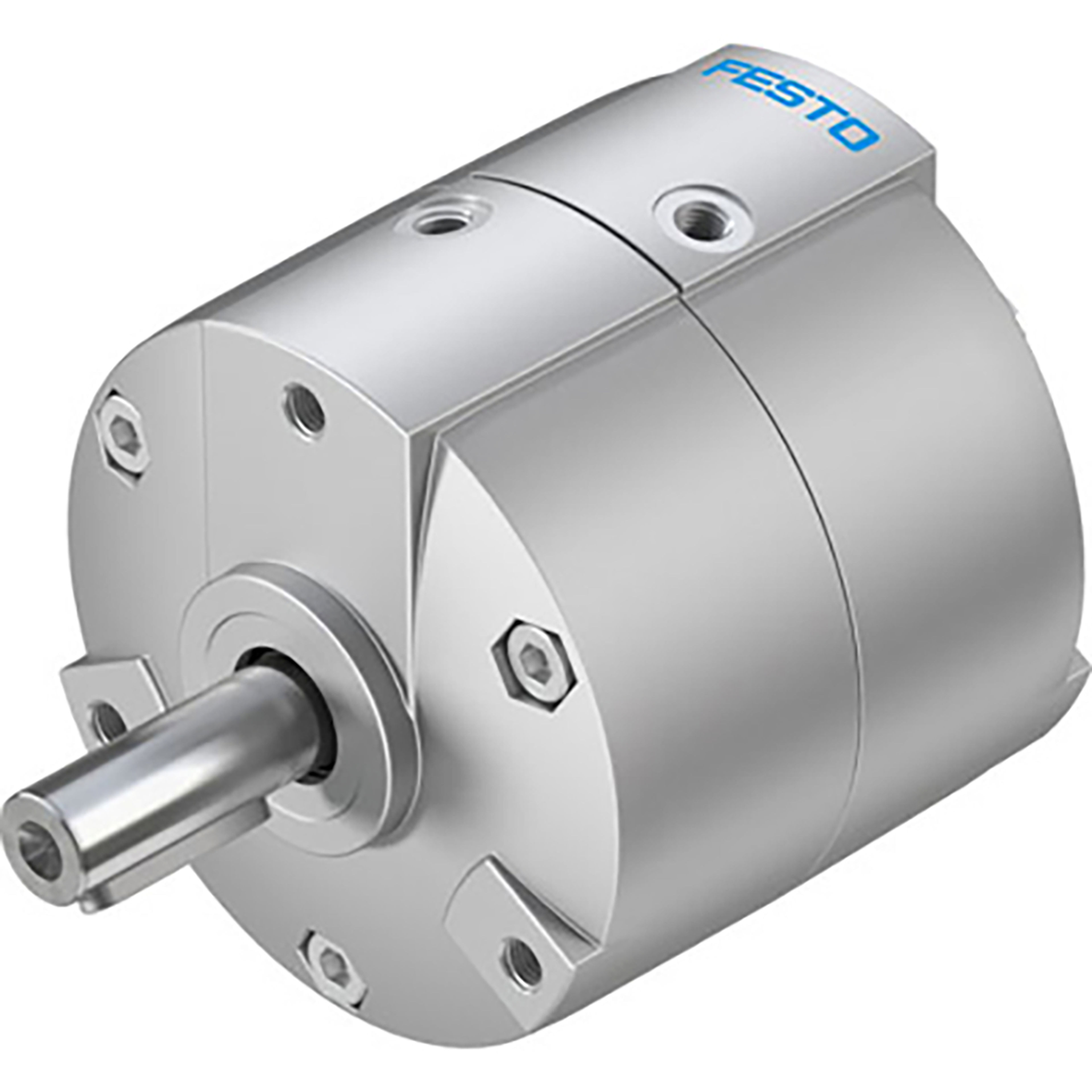

Festo M3 Female Metric Semi-Rotary Drive
Product Code: 1845706Manufacturer Code: DRVS-6-90-P
...
Immediately Available - 2 in stock
tech sheet 20564
Details
Working Pressure bar
3.5 to 8
Magnetic
Y
Working Temperature
0°C to +60°C
Material
Wrought Aluminium Alloy, Anodised
Thread Size
M3
Cushioning
Pad Cushioning
Seal Material
TPE-U (PU)
Brand
Festo
Thread Type
Metric
Rotation Angle
90°
Size
6"
Thread Gender
Female
Specification
Semi-Rotary Drive Drvs-6-90-P Size=6, Cushioning Angle=0,5 Deg, Swivel Angle=0 - 90 Deg, Cushioning=P: Flexible Cushioning Rings/Plates At Both Ends, Assembly Position=Any, Festo Huge Savings! Available for a limited time - while stock lasts
Modern and compact design. Lighter than other semi-rotary drives. Housing protected against splash water and dust. Selected types in accordance with ATEX directive for potentially explosive atomspheres.
Additional Variants
Product Name
Product Code
Size
Thread Size
Rotation Angle
Working Pressure bar
Thread Type
Material
Buy Price
32
1/8"
270°
2 to 8
BSPP
Die-cast Aluminium, Painted
£211.48
Available to Order
8
M3
180°
3.5 to 8
Metric
Wrought Aluminium Alloy, Anodised
£129.61
Available to Order
8
M3
90°
3.5 to 8
Metric
Wrought Aluminium Alloy, Anodised
£129.61
Available to Order
25
M5
90°
2 to 8
Metric
Die-cast Aluminium, Painted
£137.42
Immediately Available - 1 in stock
40
1/8"
180°
2 to 8
BSPP
Die-cast Aluminium, Painted
£273.85
Available to Order
16
M5
270°
2.5 to 8
Metric
Die-cast Aluminium, Painted
£128.64
Available to Order
25
M5
270°
2 to 8
Metric
Die-cast Aluminium, Painted
£137.42
Available to Order
32
1/8"
180°
2 to 8
BSPP
Die-cast Aluminium, Painted
£211.48
Immediately Available - 2 in stock
25
M5
180°
2 to 8
Metric
Die-cast Aluminium, Painted
£137.42
Available to Order
40
1/8"
90°
2 to 8
BSPP
Die-cast Aluminium, Painted
£273.85
Available to Order
40
1/8"
270°
2 to 8
BSPP
Die-cast Aluminium, Painted
£273.85
Available to Order
16
M5
180°
2.5 to 8
Metric
Die-cast Aluminium, Painted
£128.64
Immediately Available - 1 in stock
16
M5
90°
2.5 to 8
Metric
Die-cast Aluminium, Painted
£128.64
Available to Order
32
1/8"
90°
2 to 8
BSPP
Die-cast Aluminium, Painted
£211.48
Immediately Available - 1 in stock
12
M5
90°
2.5 to 8
Metric
Die-cast Aluminium, Painted
£121.81
Available to Order
6
M3
180°
3.5 to 8
Metric
Wrought Aluminium Alloy, Anodised
£126.69
Immediately Available - 1 in stock
12
M5
180°
2.5 to 8
Metric
Die-cast Aluminium, Painted
£121.81
Available to Order
12
M5
270°
2.5 to 8
Metric
Die-cast Aluminium, Painted
£121.81
Available to Order
