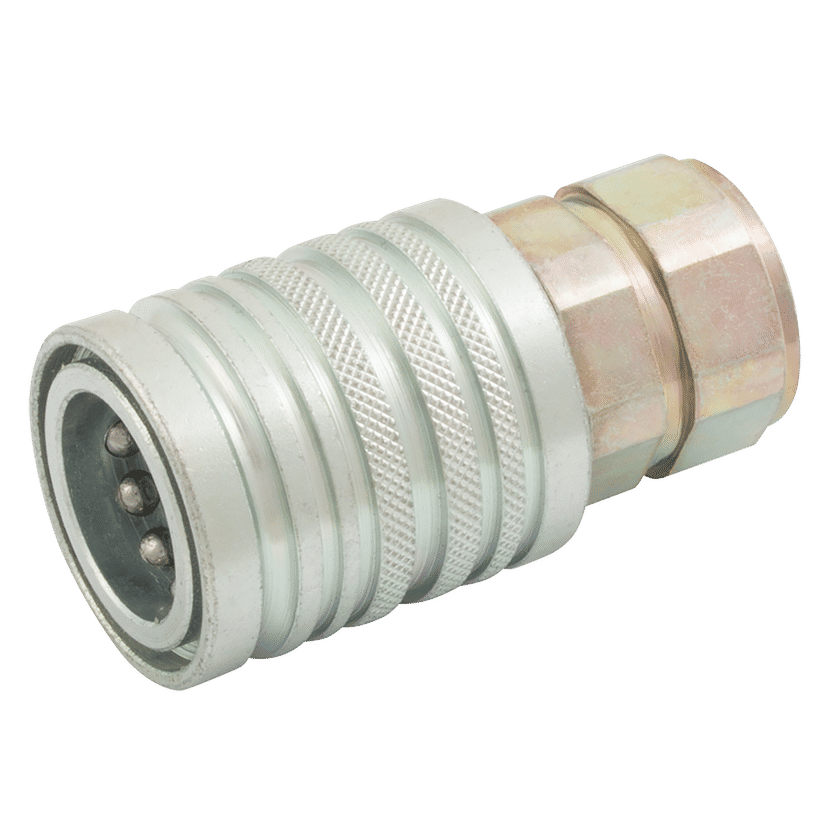

dnp 1/2" BSP Parallel Female Coupling
Product Code: PPV3.1313.112
...
Immediately Available - 11 in stock
tech sheet 20475
Details
Thread Size
1/2"
Working Temperature
-25°C to +100°C
Material
Steel
Brand
dnp
Thread Type
BSPP
Seal Material
Nitrile
Operation
Valved
Maximum Working Pressure bar
250
Standard
ISO 7241-1 A
Thread Gender
Female
Specification
1/2" BSP Parallel Female, Valved, Hydraulic Quick Release, Coupling, ISO A Profile, PPV3 Series, Steel, Nitrile Seal, ISO 7241-1 A, Standard, Working Temperature -25°C to +100°C, Maximum Working Pressure 250 bar, dnp
Standard: ISO 7241-1 A, Sleeve: double acting, Occlusion: poppet, Locking: radial balls, Material: steel, Finishing: Zn-Fe (Cr III), Available Threads: BSPP, NPT, SAE, Metric, Standard Seals: Nitrile, Optional Seals: Viton, EPDM, Connection Under Pressure: not allowed, Push / Pull design, Ideal for mobile applications using hydraulic attachments, PPV series is designed to break away in case of accidental pulls, One hand to connect and disconnect.
Additional Variants
Product Name
Product Code
Thread Size
Maximum Working Pressure bar
Buy Price
1/4"
350
£58.47
Immediately Available - 2 in stock
1"
225
£84.60
Immediately Available - 2 in stock
3/4"
250
£101.71
Available to Order
3/8"
300
£24.76
Available to Order
