M315-88411

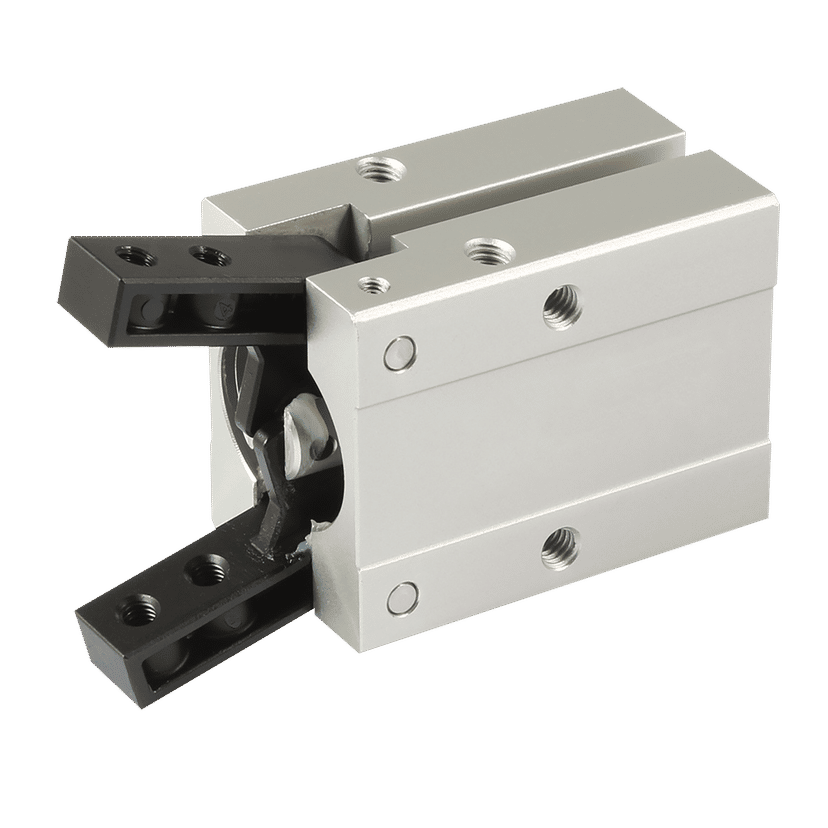

FT Pro 6MM Angular Grip Double Acting Gripper

Product Code: KHFY6



...

Available to Order

tech sheet 20470

Details

Bore Size mm
6
Seal Material
Nitrile
Working Temperature
-20°C to 70°C
Thread Size
M3 x 0.5
Thread Type
Metric
Working Pressure bar
1.5 to 7
Piston Rod Material
Aluminium Alloy/Stainless Steel
Brand
FT Pro
Thread Gender
Female
Body Material
Aluminium Alloy

Specification

M3 x 0.5 Metric Female, Pneumatic Gripper, Angular Style, Double Acting, Bore 6mm, Optimum Gripping Points 30mm, Aluminium Alloy/Stainless Steel Piston Rod, Aluminium Alloy Body, Nitrile O-Ring, Working Temperature -20°C to +70°C, Working Pressure 1.5 to 7 bar, FT Pro

Uses a single piston structure to generate a large gripping force. Integrated variable flow valve to conveniently adjust the speed of opening and closing of the fingers. Precise positioning accuracy when gripping component. Body profile adapted with grooves for mounting sensor switches. Integrated magnet for added control. Gripping jaw opening and closing angle 30° to -10°. Single acting N/O available on request. Interchangeability: SMC.

Additional Variants

Product Name
Product Code
Bore Size mm
Working Pressure bar
Thread Size
Buy Price
M315-88411
10
1 to 7
M3 x 0.5
£162.03

Available to Order

M315-88411
32
1 to 7
M5 x 0.8
£296.21

Available to Order

M315-88411
16
1 to 7
M5 x 0.8
£172.79

Available to Order

M315-88411
25
1 to 7
M5 x 0.8
£166.32

Available to Order

M315-88411
20
1 to 7
M5 x 0.8
£194.70

Available to Order
