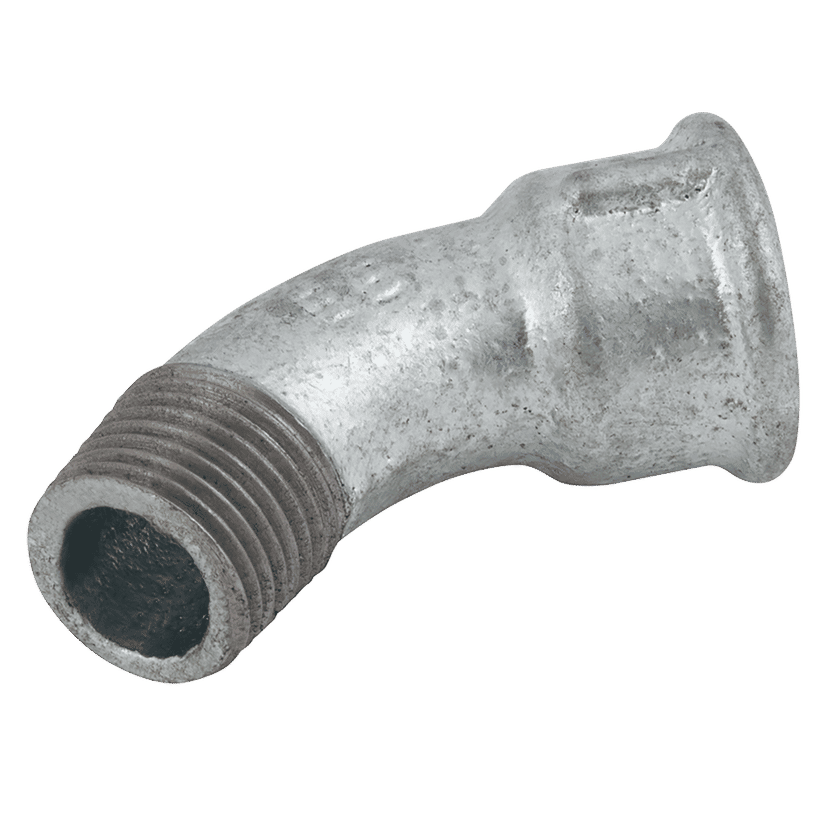

EE 3/8" BSPT/P Male/Fem 45° Bend Galvanised
Product Code: EE-MI40-38
...
Immediately Available - 84 in stock
tech sheet 20528
Details
Thread Type B
BSPP
Thread Gender A
Male
Thread Size B
3/8"
Maximum Working Pressure bar
25
Brand
EE
Thread Type A
BSPT
Thread Gender B
Female
Thread Size A
3/8"
Working Temperature
-20°C to 120°C
Specification
3/8" BSP Tapered Male x 3/8" BSP Parallel Female, Malleable Iron Pipe Fitting, Galvanised, Equal 45° Bend, Fig. 40, Working Temperature -20°C to +120°C, Maximum Working Pressure 25 bar, EE
Threads: Threads are in accordance to IS07-1. All male threads are BSPT and female threads are BSPP. Materials: Whiteheart malleable EN-GJMW-400-5 cast iron, grade W40-05 according to ISO5922/DIN-1692, and tested in accordance to EN 10242 Media: Suitable for the flow of water, steam, gas or other non aggressive media. Surface Finishing: Black: With an anti-corrosive varnish to protect against rust whilst in stock and after installation prior to plant conditioning. Galvanised: According to EN 10242, zinc coating weight relative to surface exceeds 500 gr/m² (average layer thickness 70 micron).
