Available to Order
tech sheet 10288
Details
Ball Material
Santoprene
Brand
Graco
Seat Material
Polypropylene
Flow LPM
56.88
Centre Porting Thread Type
BSPP
Body Material
Polypropylene
Centre Porting Thread Size
1/2"
Diaphragm Material
Santoprene
Specification

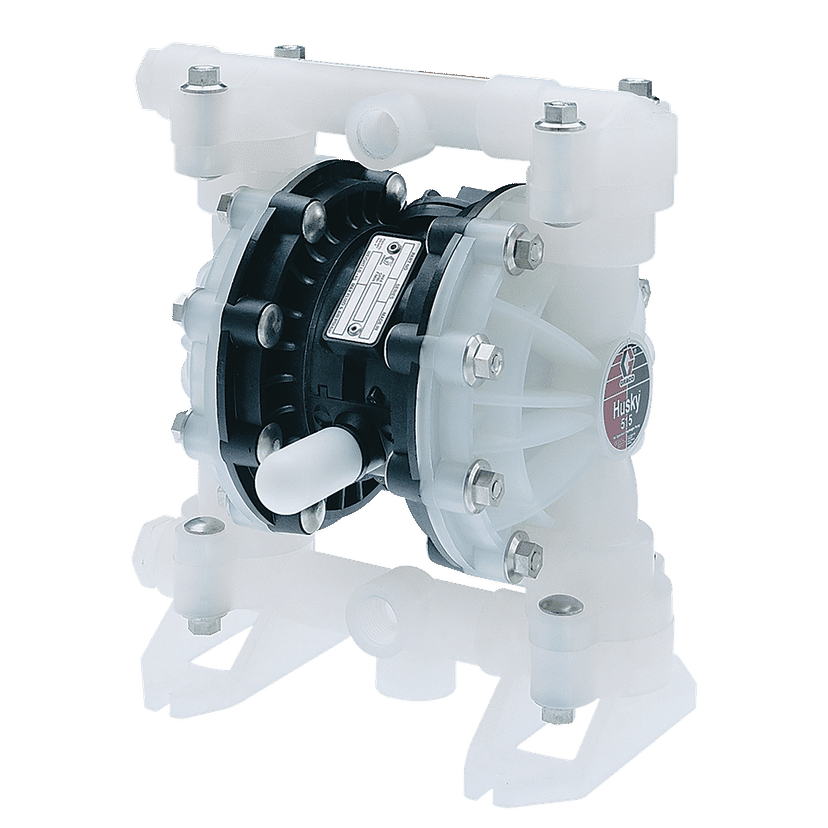

3/4" BSP Parallel End Porting x 1/2" BSP Parallel Centre Porting, Husky 515, Air Operated Double Diaphragm Pump, Polypropylene Body, Polypropylene Seat, Sentoprene Ball, Santoprene Diaphragm, Flow 56.88 Litres Per Minute, Graco
Typical Applications: Machine lube servicing. Drum evacuation. Plating and dip tanks. Water treatment. Tyoical Fluids Handled: Cleaning fluids and detergents. Chemicals. Ceramic glazes. Inks. Solvents and flammables. Acids and bases. Features: 1/2" (12.7mm) centre-porting and 3/4in. (19.05mm) end-porting. Quiet running - less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels. No seals to leak or fail. High flow rates in a small, portable package. Can also be remotely-controlled using an external controller. Delivery up to 15gpm (56.88 L/min).
Additional Variants
Product Name
Product Code
Diaphragm Material
Ball Material
Body Material
Flow LPM
Seat Material
Buy Price
Nitrile
Nitrile
Acetal
57
Acetal
£1,153.39
Available to Order
PTFE
PTFE
Polypropylene
57
Polypropylene
£795.48
Immediately Available - 1 in stock
PTFE
PTFE
Acetal
57
Acetal
£1,079.20
Available to Order
