Immediately Available - 8 in stock
tech sheet 10394
Details
Inside Diameter mm
50
Vacuum bar
0.380
Working Temperature
-40°C to +90°C
Brand
Norres
Outside Diameter mm
57
Weight Kg per Metre
0.400
Maximum Working Pressure bar
1.25
Wall Thickness mm
0.7
Length Metres
10
Specification

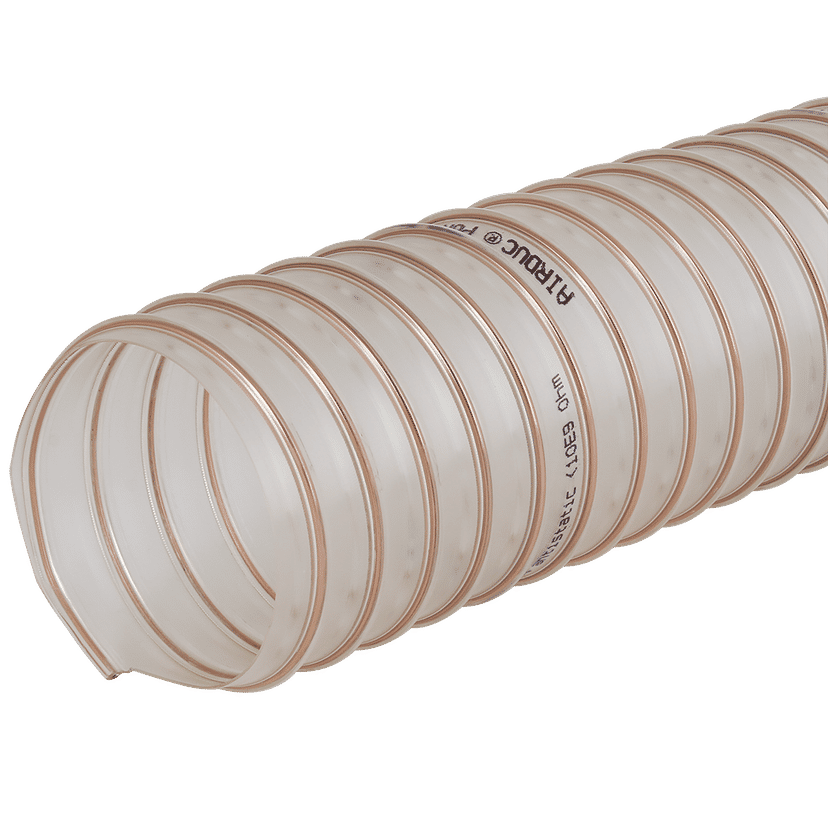

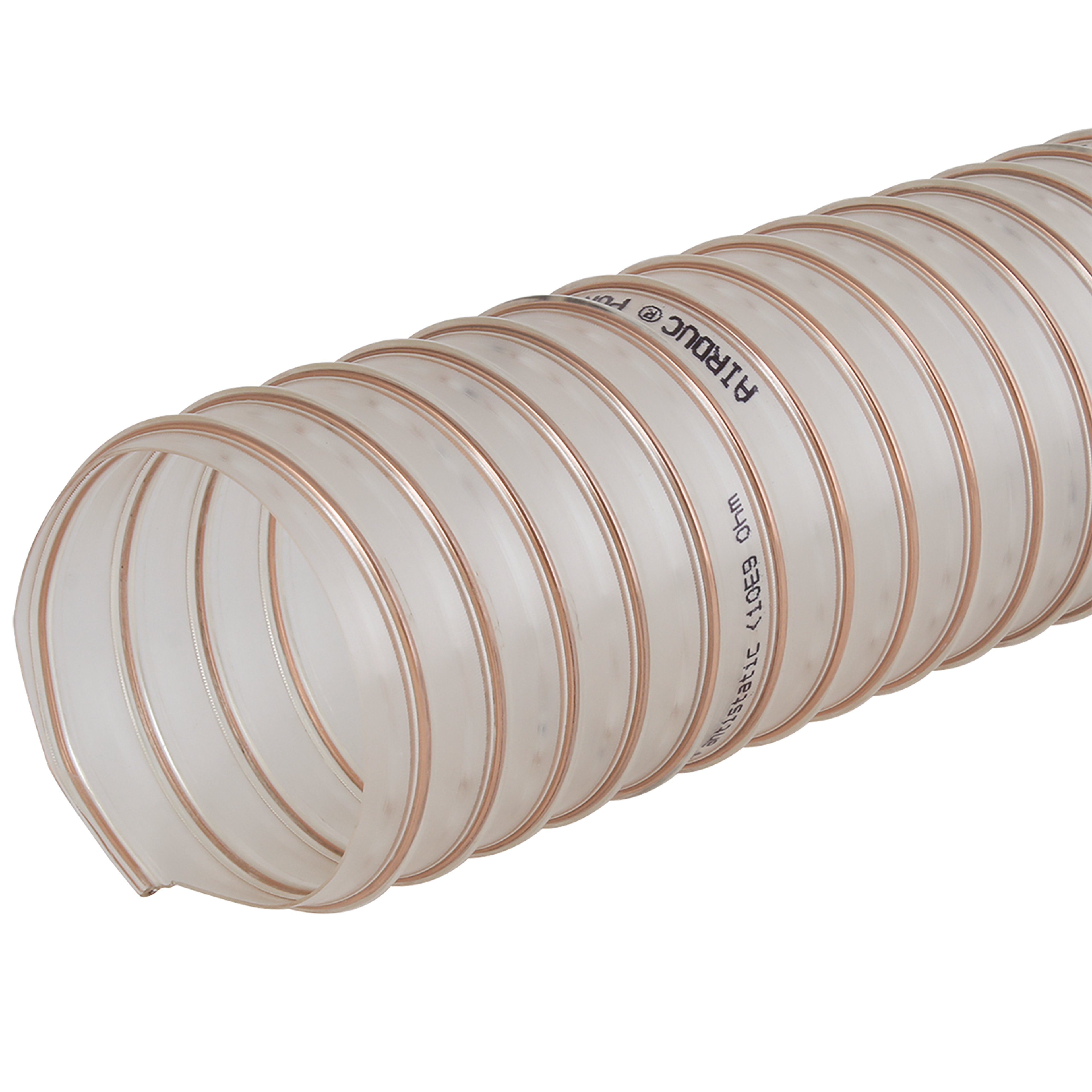

57mm Outside Diameter x 50mm Inside Diameter, Food Grade Hose & Ducting, 10 Metres, AIRDUC PUR 350 FOOD-AS, Wall Thickness 0.7mm, Weight 0.400 Kg per Metre, Maximum Vacuum Pressure 0.380 bar, Working Temperature -40°C to +90°C, Working Pressure 1.250 bar, Norres
Made from premium food grade ther Pre-PUR polyurethane, reinforced with a spring steel wire helix. Wall Thickness: 0.7mm approx. Applications: Suction and transport hose for abrasive materials uncluding food products, e.g. powders, granules, seeds, grain, etc. Also suitable for liquid media. Food grade wall (refer to Tech Sheet for food approvals information). Permenatly anti-static wall, <109Ω. Good resistance to microbes and hydrolysis. Wire spiral reinforcement can be earthed. Good resistance to oil, petrol and chemicals. High tensile strength and tear resistance. Smooth bore, optimised flow (observe direction of flow arrow). Small Bend randius. Excellent low temperature flexibility. Use clamo type 212/212EC/216 (refer to page 488).
Additional Variants
Product Name
Product Code
Vacuum bar
Maximum Working Pressure bar
Outside Diameter mm
Inside Diameter mm
Weight Kg per Metre
Buy Price
0.110
0.51
132
125
0.980
£617.10
Available to Order
0.050
0.285
232
225
2.080
£1,156.53
Available to Order
0.290
0.97
70
65
0.520
£336.60
Available to Order
0.070
0.4
167
160
1.500
£775.20
Immediately Available - 4 in stock
0.495
1.635
45
38
0.310
£273.36
Available to Order
0.055
0.32
207
200
1.860
£998.58
Available to Order
0.135
0.635
107
100
0.800
£492.15
Immediately Available - 7 in stock
0.075
0.425
157
150
1.400
£717.57
Immediately Available - 1 in stock
0.045
0.255
257
250
2.310
£1,318.76
Available to Order
0.035
0.215
307
300
2.770
£1,571.00
Available to Order
0.065
0.365
182
175
1.630
£873.94
Available to Order
0.175
0.84
82
75
0.590
£370.26
Immediately Available - 6 in stock
