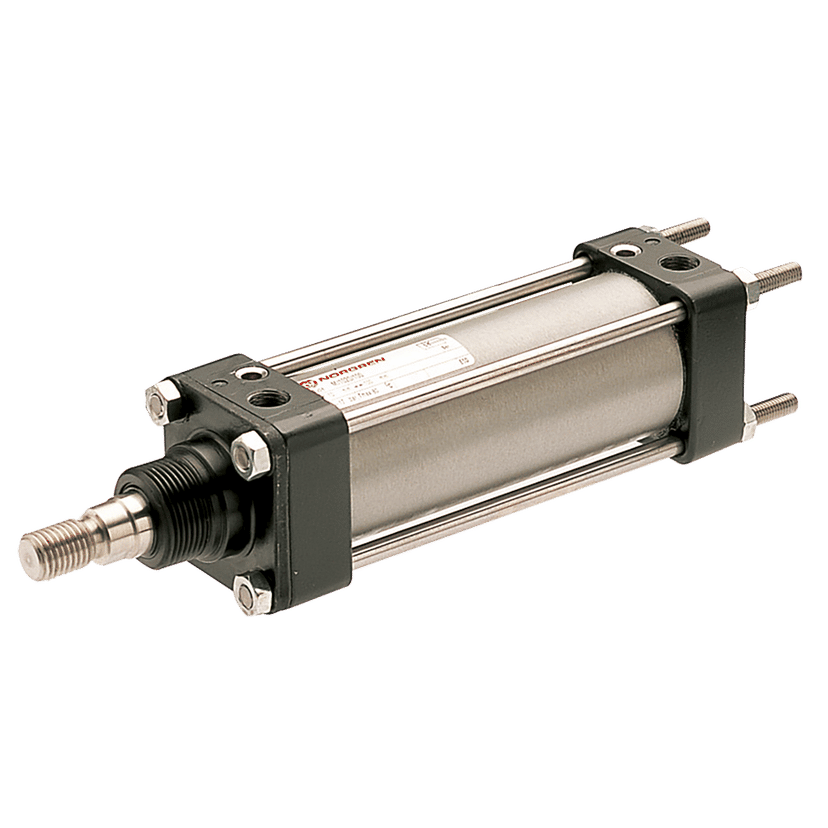

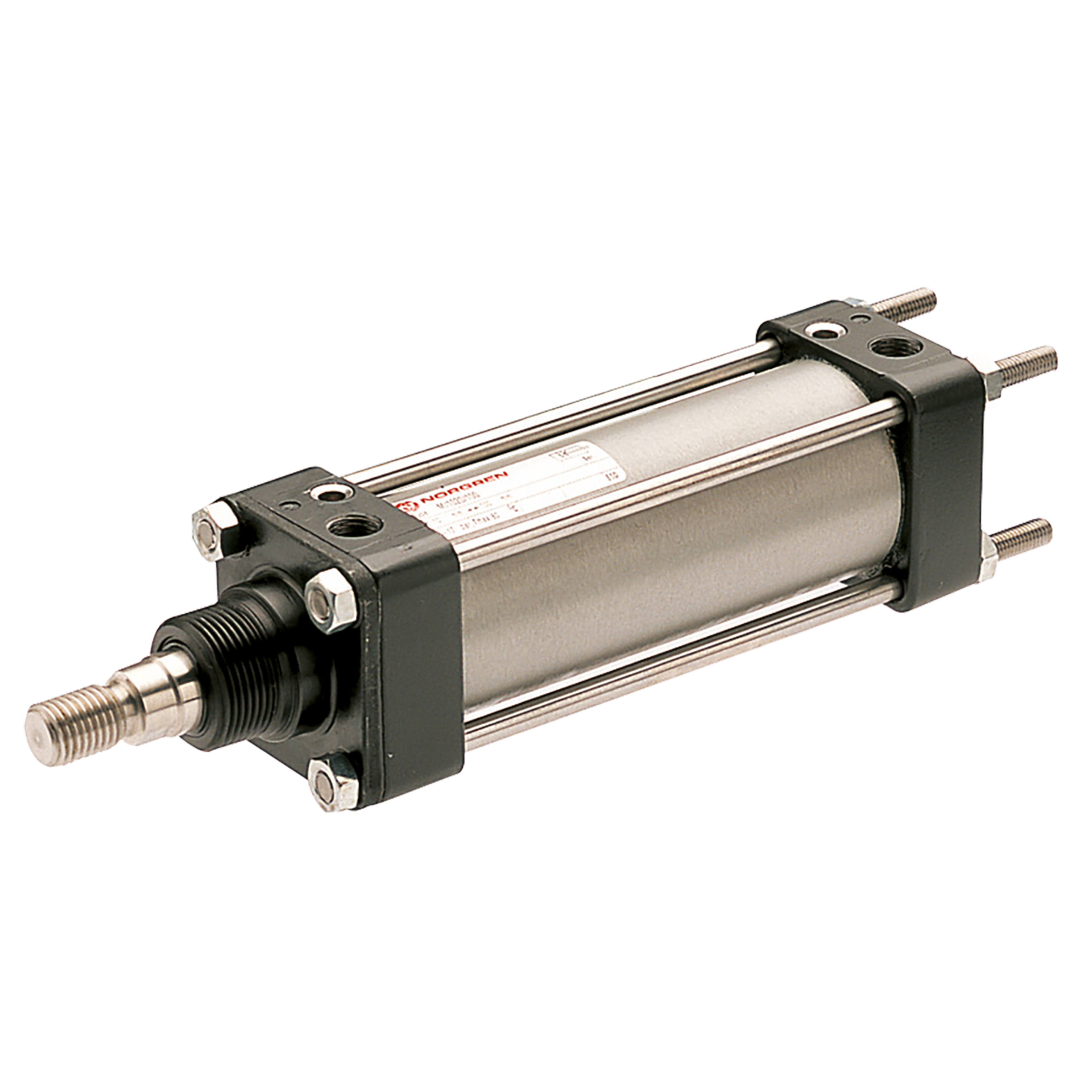

IMI Norgren 2-1/2" X 150MM D/A Imperial CYL
Product Code: RM/925/150...
Available to Order
tech sheet 20131
Details
Port Size Inch
3/8"
Magnetic
N
Thread Type
BSPP
Barrel Configuration
Exposed Tie Rods
Barrel Material
Aluminium
Piston Rod Thread
M22
Cushioning
Adjustable
Body Size Inch
2.1/2"
Working Temperature
-20°C to +80°C
Locknut Thread
M39 x 2
Piston Rod Material
Stainless Steel
Maximum Working Pressure bar
10
Stroke Length mm
150
Brand
IMI Norgren
Thread Gender
Female
Specification
3/8" BSP Parallel Female Ports, 2.1/2" Bore x 150mm Stroke Length, Imperial Cylinder, Double Acting Imperial RM/900, Exposed Tie Rods, Aluminium Barrel, Stainless Steel Piston Rod, Adjustable Cushioning, M22 Piston Rod Male, Working Temperature -2°C to +8°C, Maximum Pressure 10 bar, IMI Norgren
Large range of bore sizes – ideal for a wide variety of industrial applications. Extensive choice of mountings. Long established design – proven ruggedness and reliability. Adjustable cushioning. Medium: Compressed air, filtered, lubricated or non-lubricated. Operation: Double acting, adjustable cushioning. Piston Rod and Tie Rods: Stainless steel (martensitic). Barrel: Anodised aluminium. Piston and End Covers: Aluminium. Seals: Nitrile.
Additional Variants
Product Name
Product Code
Body Size Inch
Piston Rod Thread
Stroke Length mm
List Price
3"
M22
150
Available to Order
4"
M24
100
Available to Order
3"
M22
300
Available to Order
3"
M22
75
Available to Order
4"
M24
150
Available to Order
2.1/2"
M22
75
Available to Order
4"
M24
300
Available to Order
3"
M22
100
Available to Order
2.1/2"
M22
100
Available to Order
