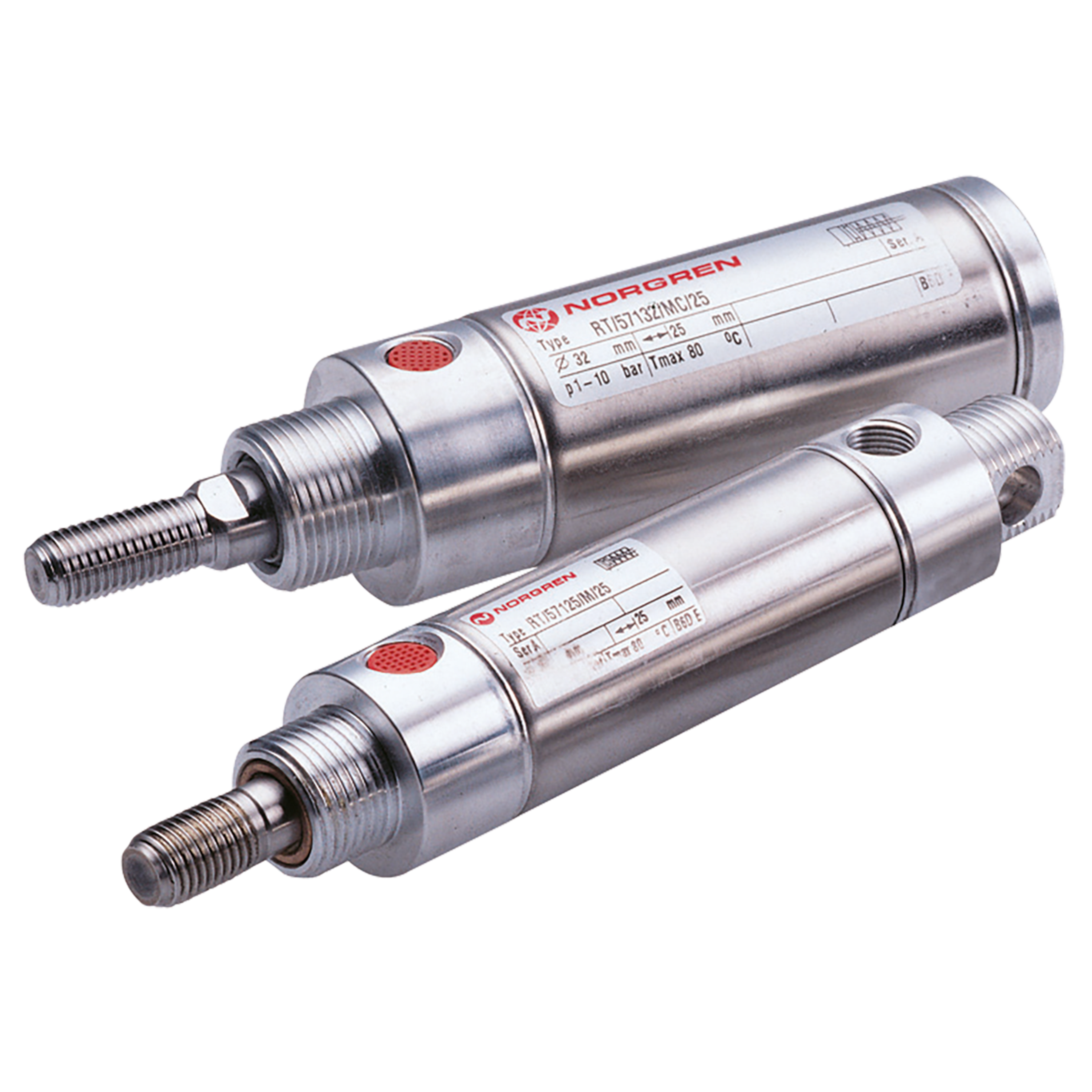

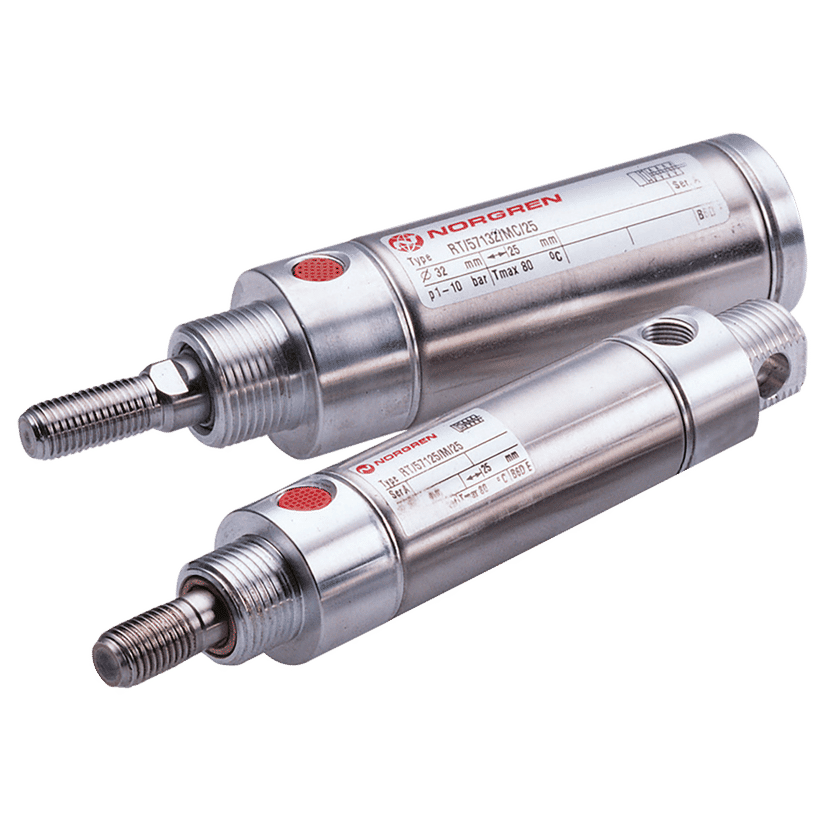

IMI Norgren 16 x 80MM D/A Roundline CYL
Product Code: RT/57216/M/80
...
Immediately Available - 2 in stock
tech sheet 10315
Details
Bore Size mm
16
Magnetic
Y
Stroke Length mm
80
Piston Rod Thread Gender
Male
Port Size Metric
M5
Barrel Material
Stainless Steel
Thread Type
Metric
Working Temperature
-5°C to +80°C
Locknut Thread
M12 x 1.25
Piston Rod Material
Stainless Steel
Cushioning
Buffer
Maximum Working Pressure bar
10
Brand
IMI Norgren
Thread Gender
Female
Piston Rod Thread
M6
Specification
M5 Metric Female Ports, 16mm Bore x 80mm Stroke Length, Roundline Cylinder, Magnetic, Double Acting RT/57200/M, Side Port - Rear Eye, Stainless Steel Barrel and Piston Rod, Buffer Cushioning, M6 Piston Rod Male , Locknut M12 x 1.25, Working Temperature -5°C, Maximum Pressure 10 bar, IMI Norgren Huge Savings! Available for a limited time - while stock lasts
One fifth shorter than the basic length of a corresponding VDMA/ISO cylinder. Low friction, long life seals. High strength, double crimped end cap design. Standard magnetic piston for full control system versatility. Non-lube operation. Choice of porting option for compact installation. Medium: Compressed air, filtered, lubricated or non-lubricated. Operation (Double Acting): Double acting, buffer cushioning. Piston Rod (Single Acting): Stainless steel (16 mm bore martensitic, 20 to 40mm bore austenitic). Piston Rod (Double Acting): Stainless steel (16mm bore martensitic, 20 to 63mm bore austenitic). Barrel: Stainless steel (austenitic). Seals & O-Rings: Nitrile. Wiper: Polyurethane. End Covers: Aluminium.
Additional Variants
Product Name
Product Code
Piston Rod Thread Gender
Thread Type
Piston Rod Thread
Port Size Inch
Bore Size mm
Locknut Thread
Stroke Length mm
Buy Price
Female
BSPT
M10 x 1.25
1/8"
25
M18 x 1.5
25
£69.75
Available to Order
Female
BSPT
M12 x 1.27
1/8"
40
M30 x 1.5
100
£127.50
Available to Order
Female
BSPT
M8
1/8"
20
M16 x 1.5
100
£73.48
Available to Order
Female
BSPT
M12 x 1.25
1/8"
40
M30 x 1.5
50
£120.32
Available to Order
Female
BSPT
M10 x 1.25
1/8"
32
M22 x 1.5
50
£102.20
Available to Order
Female
BSPT
M10 x 1.25
1/8"
25
M18 x 1.5
50
£73.11
Available to Order
Female
BSPT
M10 x 1.25
1/8"
32
M22 x 1.5
160
£117.99
Available to Order
Female
BSPT
M10 x 1.25
1/8"
25
M18 x 1.5
80
£77.15
Available to Order
Female
BSPT
M10 x 1.25
1/8"
25
M18 x 1.5
100
£79.84
Available to Order
Female
BSPT
M10 x 1.25
1/8"
25
M18 x 1.5
160
£87.92
Available to Order
Female
BSPT
M10 x 1.25
1/8"
32
M22 x 1.5
100
£109.38
Available to Order
Female
BSPT
M8
1/8"
20
M16 x 1.5
10
£62.98
Available to Order
Female
BSPT
M12 x 1.26
1/8"
40
M30 x 1.5
80
£124.63
Available to Order
Female
BSPT
M10 x 1.25
1/8"
32
M22 x 1.5
25
£98.61
Available to Order
Female
BSPT
M8
1/8"
20
M16 x 1.5
25
£64.73
Available to Order
Female
BSPT
M10 x 1.25
1/8"
32
M22 x 1.5
80
£106.51
Available to Order
Male
Metric
M6
–
16
M12 x 1.25
25
£59.97
Available to Order
