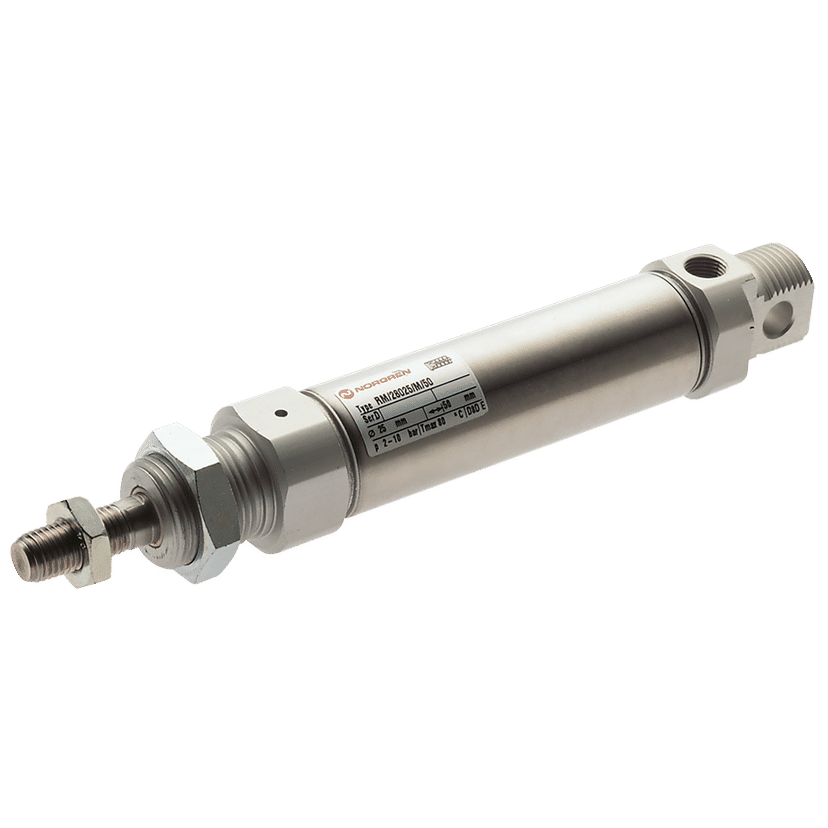

IMI Norgren 25 X 50MM Single Acting CYL
Product Code: RM/28025/M/50
...
Available to Order
tech sheet 10316
Details
Piston Rod Thread
M10 x 1.25
Magnetic
Y
Piston Rod Thread Gender
Male
Thread Type
BSPP
Port Size Inch
1/8"
Barrel Material
Stainless Steel
Working Temperature
-10°C to +80°C
Piston Rod Material
Stainless Steel
Cushioning
Buffer
Locknut Thread
M22 x 1.5
Maximum Working Pressure bar
10
Bore Size mm
25
Brand
IMI Norgren
Stroke Length mm
50
Thread Gender
Female
Specification
1/8" BSP Parallel Female Ports, 25mm Bore x 50mm Stroke Length, ISO 6432 Cylinder, Single Acting RM/8000/M, Magnetic, Standard, Stainless Steel Barrel and Piston Rod, Buffer Cushioning, M10 x 1.25 Male Rod Thread, M22 x 1.5 Locknut, Working Temperature -10°C, Maximum Working Pressure 10 bar, IMI Norgren
Magnetic piston as standard. Generally conforms to ISO 6432. High strength, double crimped end cap design. Corrosion resistant. Nose mounting nut and piston rod locknut as standard. Optional port arrangement for compact installation. Medium: Compressed air, filtered, lubricated or non-lubricated. Standard: ISO 6432. Buffer: Polyurethane. Operation: Single acting (sprung in), magnetic piston, buffer cushioning. Barrel: Stainless steel (austenitic). Piston Rod: Stainless steel (austenitic). Seals: Nitrile rubber. End Covers: Clear anodised aluminium alloy.
Additional Variants
Product Name
Product Code
Bore Size mm
Stroke Length mm
Piston Rod Thread
Thread Type
Locknut Thread
Port Size Metric
Buy Price
20
25
M8
BSPP
M22 x 1.5
–
£61.05
Available to Order
20
50
M8
BSPP
M22 x 1.5
–
£66.29
Available to Order
20
10
M8
BSPP
M22 x 1.5
–
£58.92
Available to Order
10
10
M4
Metric
M12 x 1.25
M5
£47.85
Available to Order
10
50
M4
Metric
M12 x 1.25
M5
£48.63
Available to Order
25
25
M10 x 1.25
BSPP
M22 x 1.5
–
£68.82
Available to Order
10
25
M4
Metric
M12 x 1.25
M5
£48.43
Available to Order
25
10
M10 x 1.25
BSPP
M22 x 1.5
–
£66.29
Available to Order
