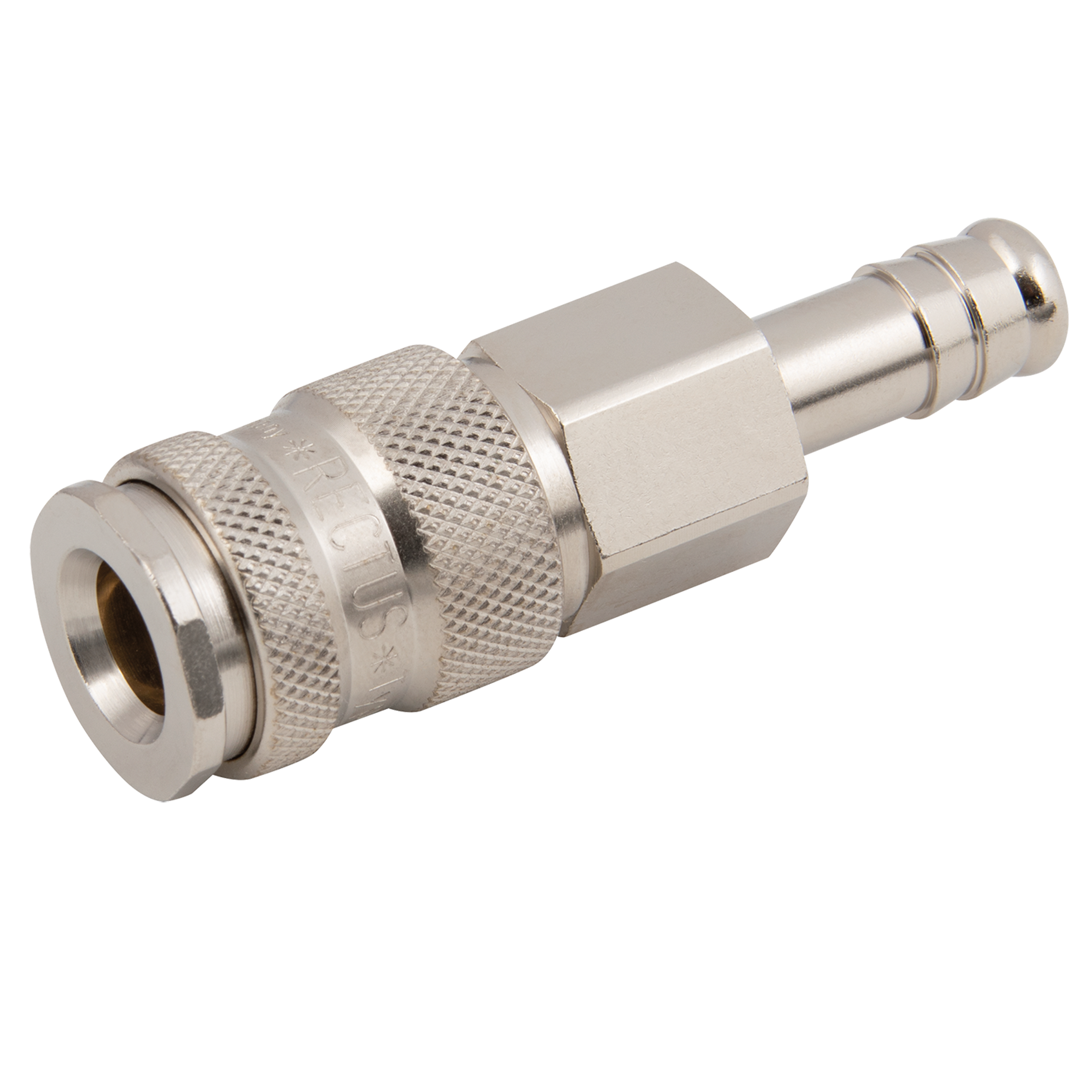

Parker Rectus 6MM Hose Tail Coupling Brass Nickel Plated
Product Code: 22KATF06MPN
...
Details
Operation
Non Valved
Seal Material
Nitrile
Maximum Working Pressure bar
35
Material
Brass Nickel Plated
Brand
Parker Rectus
To Suit ID mm
6
Working Temperature
-20°C to 120°C
To Suit ID inch
1/4"
Specification
Pneumatic Quick Release, Series 22KA, Standard, Parker Rectus, Coupling, Hose Tail, To Suit Hose Inside Diameter 6mm (1/4"), Non Valved, Brass Nickel Plated, Nitrile Seal, Working Temperature -20°C to +120°C, Maximum Working Pressure 35 bar, Parker Rectus
Interchangeability: Rectus 14, Aro 210, Parker 50, Orion 44510, JWL 522 & JWL 532. Material: Brass nickel plated, NBR seal (standard series coupling). Application: Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. Specially suited to use with gaseous media in industry. The steel sleeve counters oscillating forces.
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. Code22KATF08MPNList-Discount-Buy£60.20Line£60.20Available to Order
- Prod. Code22KATF13MPNList-Discount-Buy£44.33Line£44.33
Available to Order
