M311-60294

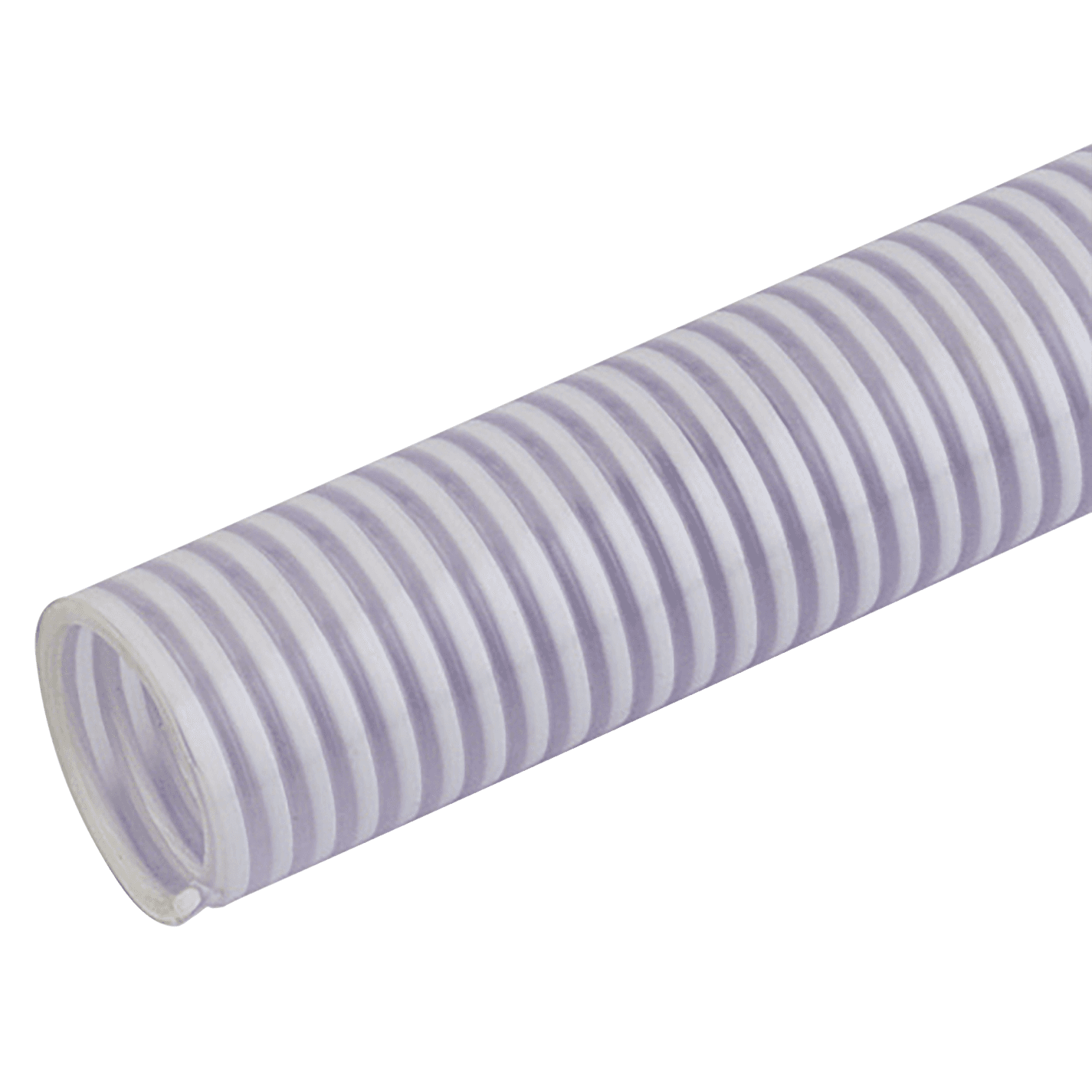

FT Pro 4" ID Food Quality Suction Discharge Hose 10M

Product Code: FQSD4-10



...

Details

Maximum Working Pressure bar
4
Working Temperature
-15°C to +65°C
Inside Diameter Inch
4"
Colour
Clear
Wall Thickness mm
6
Bend Radius mm
470
Brand
FT Pro
Length Metres
10

Specification

4" Inside Diameter, Industrial Hose, None Toxic Suction Discharge Hose, 6mm Wall Thickness, Length 10 Metres,Bend Radius 470mm, Clear, Hose Material, Working Temperature -15°C to +65°C, Maximum Working Pressure 4 bar, FT Pro

Cold Bend: -45°C. Vacuum: 570mm Hg = 75% at 20°C. Raw materials used have FDA approval for use with foodstuffs. Applications: Suction and discharge applications of liquids and solids. Pressures: Values given are based on the short term burst pressure of the hose at 20°C based on a 3:1 safety factor. Note: Any increase in temperature above 20°C will result in a decline in working pressure values. Chemical Resistance: Resistant to most oxidising and reducing agents and diluted acids and alkalis. For more detailed information please contact technical slaes.
