M311-59973

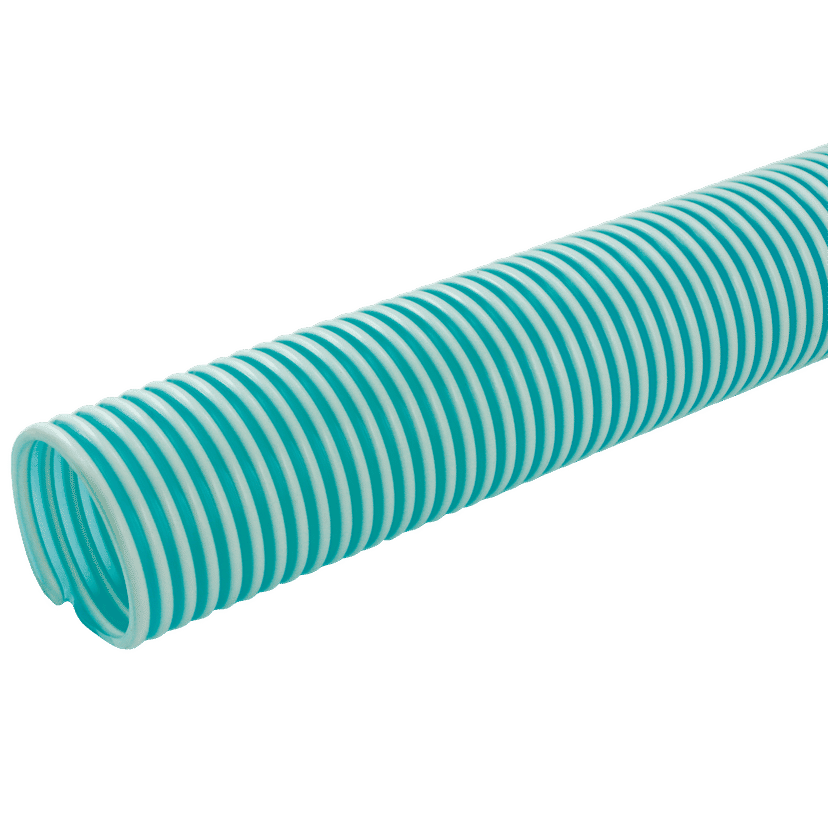

Jaymac 3" ID Water Delivery Hose X 10M

Product Code: WDH3-10



...

tech sheet 20213

Details

Maximum Working Pressure bar
4
Working Temperature
-15°C to +65°C
Brand
Jaymac
Wall Thickness mm
4.1
Inside Diameter Inch
3"
Bend Radius mm
500
Colour
Translucent Green
Length Metres
10

Specification

3" inside Diameter, Jaymac Suction Hose, 10 Metre Coils, Water Delivery, Jaymac, Wall Thickness 4.1mm, Bend radius 500mm, Translucent Green, Length 10 Metres, Working Temperature -15°C to +65°C, Maximum Working Pressure 4 bar, Jaymac

Cold Bend: -45°C. Vacuum: 570mm Hg = 75% at +20°C. Applications: Delivery and light suction of water, slurry, chemicals, some granules, sewage and other waste matter. Particularly suitable for the horticultural and marine industries. Pressures: Values given are based on the short term burst pressure of the hose at +20°C based on a 3:1 safety factor. Chemical Resistance: Resistant to most oxidising and reducing agents and diluted acids and alkalis. For more detailed information please contact Technical Sales. Note: Any increase in temperature above +20°C will result in a decline in working pressure values.
