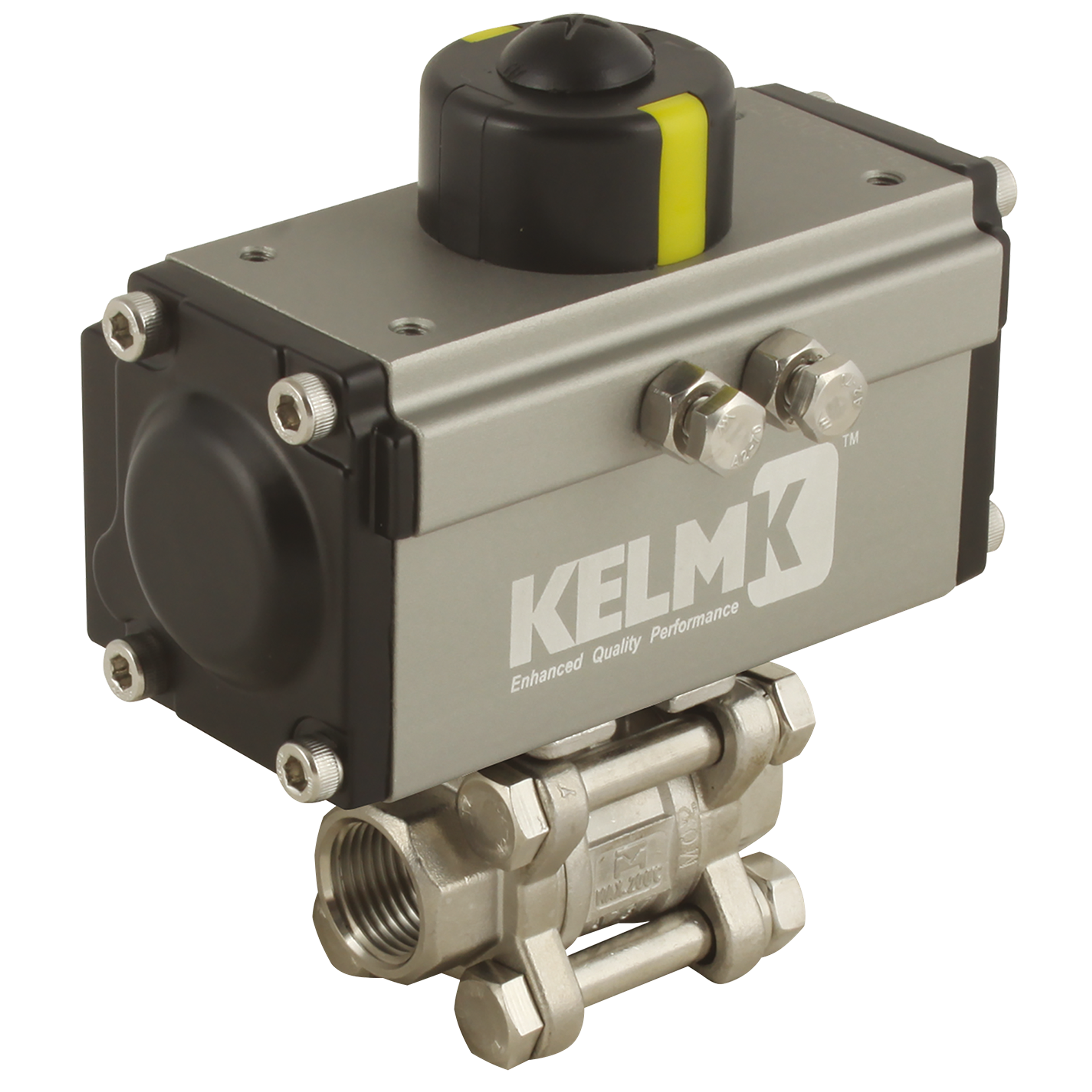

FT Pro 3" BSPP SS 3 Pc DA Aluminium ACTU B.VALVE
Product Code: 2184-0051
...
Immediately Available - 3 in stock
tech sheet 10151
Details
Working Temperature
-20°C to +200°C
Maximum Working Pressure bar
70
Actuator Material
Aluminium
Thread Type
BSPP
Ball Valve
Full Bore
Thread Size
3"
Brand
FT Pro
Travel Adjustment
±5° on the rotation 0° and 90°
Thread Gender
Female
Body Material
Stainless Steel
Specification
3" BSP Parallel Female, Double Acting 3 Piece, Stainless Steel, Actuated Ball Valve, Travel Adjustment °5° on the Rotation 0° and 90° Standard, Stainless Steel Body, Aluminium Actuator, Ball Valve Temperature -20°C to +200°C, Ball Valve Pressure 70 bar, FT Pro Huge Savings! Available for a limited time - while stock lasts
Actuator. Media: Dry or lubricated compressed air, to be filtered by a 30µm filter element. Travel Adjustment: [U]+[U]5° on the rotation 0° and 90°. Ball Valve. Full bore.
