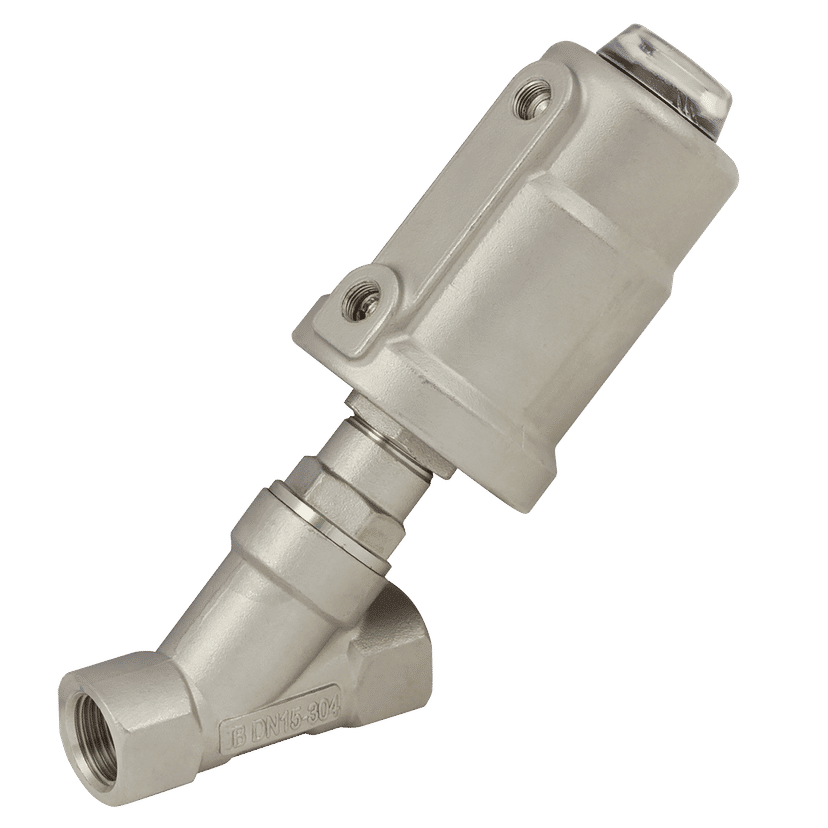

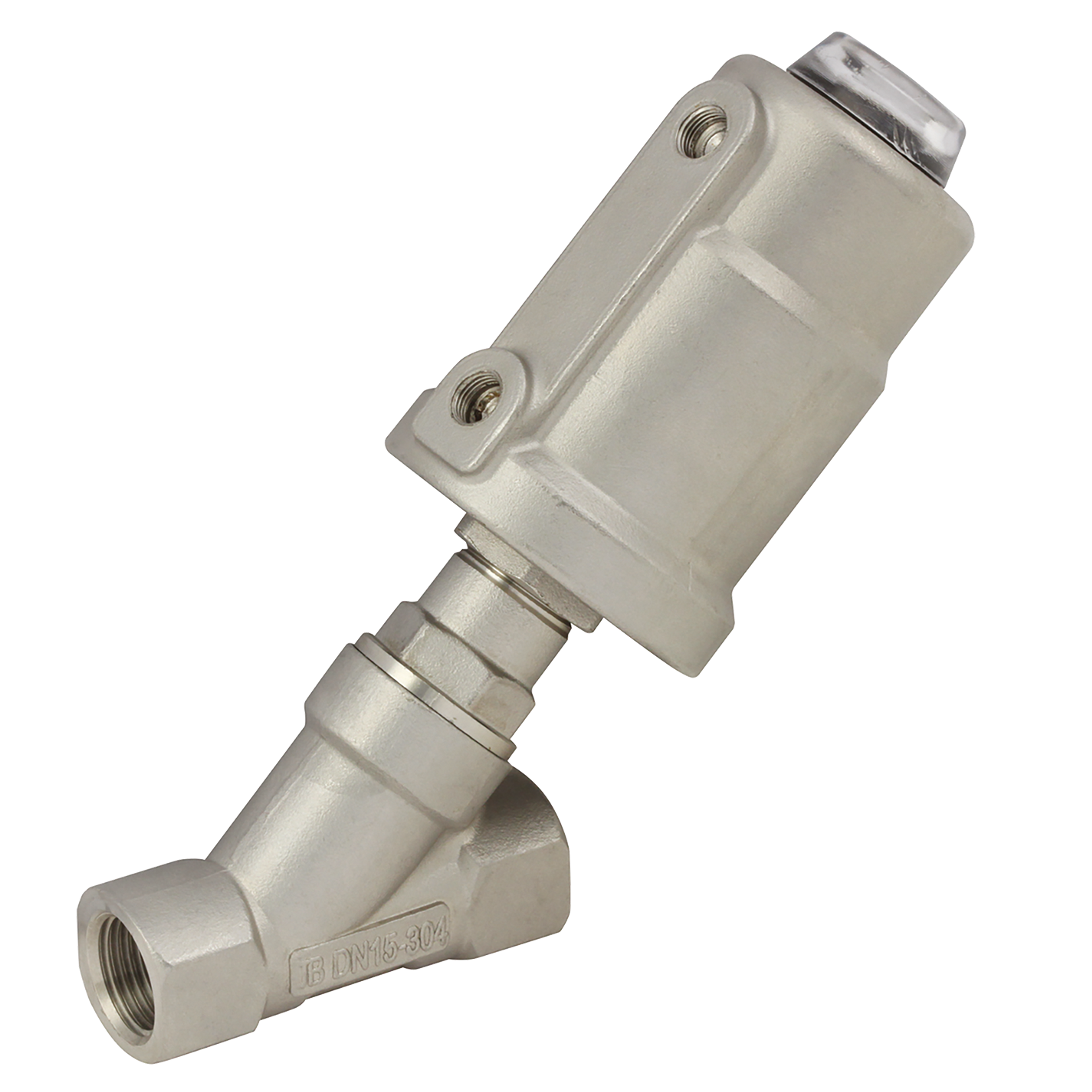

FT Pro 2"BSPP DN50 All 316 N/O Angle Seat Valve
Product Code: KASV-SSSS-2-NO
...
Immediately Available - 3 in stock
tech sheet 10204
Details
Flow LPM
910
Thread Size
2"
Working Temperature
-10°C to +180°C
Thread Type
BSPP
Valve Material
Stainless Steel
Maximum Working Pressure bar
16
Actuator Material
Stainless Steel
Brand
FT Pro
Thread Gender
Female
Specification
2" BSP Parallel Female, Angle Seat Valve, Normally Open, 2 Way Stainless Steel Valve Body & Actuator, Flow 910 Litres per Minute, PTFE Seal, Working Temperature -10°C to +180°C, Maximum Working Pressure 16 bar, FT Pro Huge Savings! Available for a limited time - while stock lasts
Compact design, available in both normally open and normally closed options. Normally Closed - Closes with the flow. Normally Open - Closes against the flow. High flow. 360° Actuator housing rotation. Single acting spring return. Suitable for use with water, oil, air, agressive media and steam. Material: Body: 316L Stainless steel. Actuator: 316L Stainless steel. Seals: PTFE.
Additional Variants
Product Name
Product Code
Thread Size
Flow LPM
Buy Price
3/4"
130
£241.98
Immediately Available - 5 in stock
1/2"
70
£202.62
Available to Order
3/8"
61
£140.83
Immediately Available - 2 in stock
1"
310
£250.58
Immediately Available - 3 in stock
