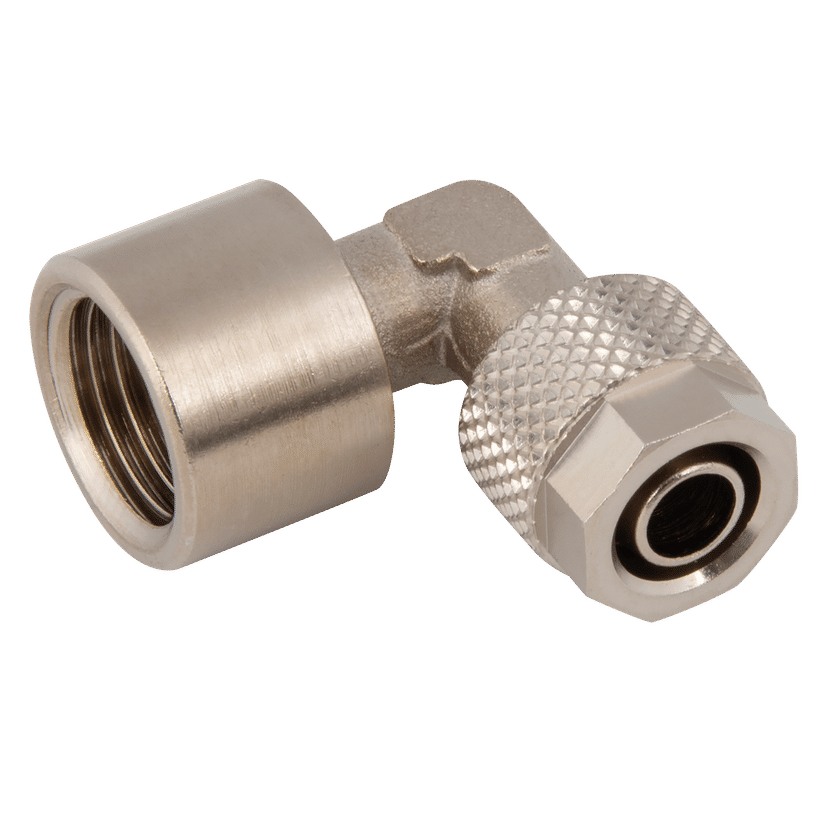

FT Pro 06/04MM OD X 1/4" BSPP Female Stud Elbow
Product Code: C5F-6/4-1/4...
Immediately Available - 129 in stock
tech sheet 10705
Details
Thread Size
1/4"
Thread Type
BSPP
Maximum Working Pressure bar
15
Material
Brass Nickel Plated
Working Temperature
-18°C to +70°C
Outside Diameter mm
46177
Brand
FT Pro
Thread Gender
Female
Specification
1/4" BSP Parallel Female, Pneumatic Quick-fit Push-on Fitting, 90° Stud Elbow, to Fit 6/4 Tube, Nickel Plated Brass, Working Temperature -18°C to +70°C, Maximum Working Pressure 15 bar, FT Pro
The working pressures and working temperatures depend on which type of tube is used; for this reason, the values must be determined in accordance with the tubes features. For the "swivel" fittings, the values are:
Additional Variants
Product Name
Product Code
Outside Diameter mm
Number of Gangs
Thread Size
List Price
46145
Yes
1/8"
Immediately Available - 3 in stock
46240
–
1/4"
Immediately Available - 13 in stock
46303
–
1/4"
Available to Order
46177
–
1/8"
Immediately Available - 30 in stock
46240
–
1/8"
Immediately Available - 31 in stock
46303
–
3/8"
Immediately Available - 9 in stock
